Popular Item Data

Cylindrical Roller Bearings

Single Row Cylindrical Roller Bearings

Principal dimensions			Basic load ratings		Fatigue load limit	Designation
			dynamic	static
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]
90	190	43	365	360	43	NJ 318 ECM
90	190	43	365	360	43	NJ 318 ECP
90	190	43	365	360	43	NU 318 ECJ
90	190	43	365	360	43	NU 318 ECM
90	190	43	365	360	43	NU 318 ECP
90	190	43	365	360	43	NUP 318 ECJ
90	190	43	365	360	43	NUP 318 ECM
90	190	43	365	360	43	NJ 318 ECML
90	190	43	365	360	43	NU 318 ECML
90	190	43	365	360	43	NUP 318 ECML
90	190	64	500	540	65.5	NJ 2318 ECJ
90	190	64	500	540	65.5	NJ 2318 ECM
90	190	64	500	540	65.5	NJ 2318 ECP
90	190	64	500	540	65.5	NU 2318 ECJ
90	190	64	500	540	65.5	NU 2318 ECM
90	190	64	500	540	65.5	NU 2318 ECP
90	190	64	500	540	65.5	NJ 2318 ECML
90	190	64	500	540	65.5	NU 2318 ECML
90	190	64	500	540	65.5	NUP 2318 ECML
95	145	24	84.2	110	13.2	NU 1019 ML
95	170	32	255	265	32.5	N 219 ECP
95	170	32	255	265	32.5	NJ 219 ECJ
95	170	32	255	265	32.5	NJ 219 ECM
95	170	32	255	265	32.5	NJ 219 ECP
95	170	32	255	265	32.5	NU 219 ECJ
95	170	32	255	265	32.5	NU 219 ECM
95	170	32	255	265	32.5	NU 219 ECP
95	170	32	255	265	32.5	NUP 219 ECM

Principal dimensions			Basic load ratings		Fatigue load limit	Designation
			dynamic	static
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]
95	170	32	255	265	32.5	NU 219 ECML
95	170	32	255	265	32.5	NUP 219 ECML
95	170	43	325	375	45.5	NJ 2219 ECJ
95	170	43	325	375	45.5	NJ 2219 ECM
95	170	43	325	375	45.5	NJ 2219 ECP
95	170	43	325	375	45.5	NU 2219 ECJ
95	170	43	325	375	45.5	NU 2219 ECM
95	170	43	325	375	45.5	NU 2219 ECP
95	170	43	325	375	45.5	NUP 2219 ECP
95	200	45	390	390	46.5	N 319 ECM
95	200	45	390	390	46.5	N 319 ECP
95	200	45	390	390	46.5	NJ 319 ECJ
95	200	45	390	390	46.5	NJ 319 ECM
95	200	45	390	390	46.5	NJ 319 ECP
95	200	45	390	390	46.5	NU 319 ECJ
95	200	45	390	390	46.5	NU 319 ECM
95	200	45	390	390	46.5	NU 319 ECP
95	200	45	390	390	46.5	NUP 319 ECM
95	200	45	390	390	46.5	NUP 319 ECP
95	200	45	390	390	46.5	NJ 319 ECML
95	200	45	390	390	46.5	NU 319 ECML
95	200	45	390	390	46.5	NUP 319 ECML
95	200	67	530	585	69.5	NJ 2319 ECJ
95	200	67	530	585	69.5	NU 2319 ECJ
95	200	67	530	585	69.5	NU 2319 ECP
95	200	67	530	585	69.5	NUP 2319 ECJ
95	200	67	530	585	69.5	NJ 2319 ECML
95	200	67	530	585	69.5	NU 2319 ECML
95	200	67	530	585	69.5	NUP 2319 ECML
100	150	24	85.8	114	13.7	NU 1020 M

Principal dimensions			Basic load ratings		Fatigue load limit	Designation
			dynamic	static
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]
100	150	24	85.8	114	13.7	NU 1020 ML
100	180	34	285	305	36.5	N 220 ECP
100	180	34	285	305	36.5	NJ 220 ECJ
100	180	34	285	305	36.5	NJ 220 ECM
100	180	34	285	305	36.5	NJ 220 ECP
100	180	34	285	305	36.5	NU 220 ECJ
100	180	34	285	305	36.5	NU 220 ECM
100	180	34	285	305	36.5	NU 220 ECP
100	180	34	285	305	36.5	NUP 220 ECP
100	180	34	285	305	36.5	NJ 220 ECML
100	180	34	285	305	36.5	NU 220 ECML
100	180	34	285	305	36.5	NUP 220 ECML
100	180	46	285	305	36.5	NUB 220 ECJ
100	180	46	380	450	54	NJ 2220 ECJ
100	180	46	380	450	54	NJ 2220 ECM
100	180	46	380	450	54	NJ 2220 ECP
100	180	46	380	450	54	NU 2220 ECJ
100	180	46	380	450	54	NU 2220 ECM
100	180	46	380	450	54	NU 2220 ECP
100	180	46	380	450	54	NUP 2220 ECP
100	180	46	380	450	54	NJ 2220 ECML
100	180	46	380	450	54	NU 2220 ECML
100	180	46	380	450	54	NUP 2220 ECML
100	215	47	450	440	51	N 320 ECM
100	215	47	450	440	51	N 320 ECP
100	215	47	450	440	51	NJ 320 ECJ
100	215	47	450	440	51	NJ 320 ECM
100	215	47	450	440	51	NJ 320 ECP
100	215	47	450	440	51	NU 320 ECJ
100	215	47	450	440	51	NU 320 ECM

Principal dimensions			Basic load ratings		Fatigue load limit	Designation
			dynamic	static
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]
100	215	47	450	440	51	NU 320 ECP
100	215	47	450	440	51	NUP 320 ECJ
100	215	47	450	440	51	NJ 320 ECML
100	215	47	450	440	51	NU 320 ECML
100	215	47	450	440	51	NUP 320 ECML
100	215	73	670	735	85	NJ 2320 ECJ
100	215	73	670	735	85	NJ 2320 ECM
100	215	73	670	735	85	NJ 2320 ECP
100	215	73	670	735	85	NU 2320 ECJ
100	215	73	670	735	85	NU 2320 ECM
100	215	73	670	735	85	NU 2320 ECP
100	215	73	670	735	85	NUP 2320 ECJ
100	215	73	670	735	85	NJ 2320 ECML
100	215	73	670	735	85	NU 2320 ECML
100	215	73	670	735	85	NUP 2320 ECML
101.6	184.15	31.75	233	280	33.5	CRL 32 AMB
101.6	215.9	44.45	391	440	51	CRM 32 AMB
105	160	26	101	137	16	NU 1021 M
105	160	26	101	137	16	NU 1021 ML
105	190	36	300	315	36.5	N 221 ECP
105	190	36	300	315	36.5	NJ 221 ECJ
105	190	36	300	315	36.5	NJ 221 ECP
105	190	36	300	315	36.5	NU 221 ECJ
105	190	36	300	315	36.5	NU 221 ECP
105	190	36	300	315	36.5	NUP 221 ECP
105	190	36	300	315	36.5	NJ 221 ECML
105	190	36	300	315	36.5	NU 221 ECML
105	190	36	300	315	36.5	NUP 221 ECML
105	225	49	500	500	57	N 321 ECP
105	225	49	500	500	57	NJ 321 ECJ

Principal dimensions			Basic load ratings		Fatigue load limit	Designation
			dynamic	static
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]
105	225	49	500	500	57	NJ 321 ECP
105	225	49	500	500	57	NU 321 ECJ
105	225	49	500	500	57	NU 321 ECP
105	225	49	500	500	57	NJ 321 ECML
105	225	49	500	500	57	NU 321 ECML
105	260	60	501	570	64	NU 421 M
110	170	28	128	166	19.3	NU 1022 ML
110	200	38	335	365	42.5	N 222 ECM
110	200	38	335	365	42.5	N 222 ECP
110	200	38	335	365	42.5	NJ 222 ECJ
110	200	38	335	365	42.5	NJ 222 ECM
110	200	38	335	365	42.5	NJ 222 ECP
110	200	38	335	365	42.5	NU 222 ECJ
110	200	38	335	365	42.5	NU 222 ECM
110	200	38	335	365	42.5	NU 222 ECP
110	200	38	335	365	42.5	NUP 222 ECP
110	200	38	335	365	42.5	NJ 222 ECML
110	200	38	335	365	42.5	NU 222 ECML
110	200	38	335	365	42.5	NUP 222 ECML
110	200	53	335	365	42.5	NUB 222 ECJ
110	200	53	440	520	61	NJ 2222 ECJ
110	200	53	440	520	61	NJ 2222 ECP
110	200	53	440	520	61	NU 2222 ECJ
110	200	53	440	520	61	NU 2222 ECP
110	200	53	440	520	61	NUP 2222 ECP
110	200	53	440	520	61	NJ 2222 ECML
110	200	53	440	520	61	NU 2222 ECML
110	200	53	440	520	61	NU 2222 ECNML
110	200	53	440	520	61	NUP 2222 ECML
110	240	50	530	540	61	N 322 ECM

Principal dimensions			Basic load ratings		Fatigue load limit	Designation
			dynamic	static
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]
110	240	50	530	540	61	N 322 ECP
110	240	50	530	540	61	NJ 322 ECJ
110	240	50	530	540	61	NJ 322 ECM
110	240	50	530	540	61	NJ 322 ECP
110	240	50	530	540	61	NU 322 ECJ
110	240	50	530	540	61	NU 322 ECM
110	240	50	530	540	61	NU 322 ECP
110	240	50	530	540	61	NUP 322 ECJ
110	240	50	530	540	61	NUP 322 ECP
110	240	50	530	540	61	NJ 322 ECML
110	240	50	530	540	61	NU 322 ECML
110	240	50	530	540	61	NUP 322 ECML
110	240	80	780	900	102	NJ 2322 ECP
110	240	80	780	900	102	NU 2322 ECP
110	240	80	780	900	102	NUP 2322 ECP
110	240	80	780	900	102	NJ 2322 ECML
110	240	80	780	900	102	NU 2322 ECML
110	280	65	523	585	64	NJ 422
110	280	65	523	585	64	NU 422
114.3	203.2	33.338	264	325	38	CRL 36 AMB
114.3	238.125	50.8	468	540	61	CRM 36 AMB
120	180	28	134	183	20.8	NU 1024 ML
120	215	40	390	430	49	N 224 ECM
120	215	40	390	430	49	N 224 ECP
120	215	40	390	430	49	NJ 224 ECJ
120	215	40	390	430	49	NJ 224 ECM
120	215	40	390	430	49	NJ 224 ECP
120	215	40	390	430	49	NU 224 ECJ
120	215	40	390	430	49	NU 224 ECM
120	215	40	390	430	49	NU 224 ECP

Principal dimensions			Basic load ratings		Fatigue load limit	Designation
			dynamic	static
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]
120	215	40	390	430	49	NUP 224 ECJ
120	215	40	390	430	49	NUP 224 ECP
120	215	40	390	430	49	NJ 224 ECML
120	215	40	390	430	49	NU 224 ECML
120	215	40	390	430	49	NUP 224 ECML
120	215	58	520	630	72	NJ 2224 ECJ
120	215	58	520	630	72	NJ 2224 ECM
120	215	58	520	630	72	NJ 2224 ECP
120	215	58	520	630	72	NU 2224 ECJ
120	215	58	520	630	72	NU 2224 ECM
120	215	58	520	630	72	NU 2224 ECP
120	215	58	520	630	72	NUP 2224 ECJ
120	215	58	520	630	72	NUP 2224 ECM
120	215	58	520	630	72	NUP 2224 ECP
120	215	58	520	630	72	NJ 2224 ECML
120	215	58	520	630	72	NU 2224 ECML
120	215	58	520	630	72	NU 2224 ECNML
120	215	58	520	630	72	NUP 2224 ECML
120	260	55	610	620	69.5	N 324 ECM
120	260	55	610	620	69.5	N 324 ECP
120	260	55	610	620	69.5	NJ 324 ECJ
120	260	55	610	620	69.5	NJ 324 ECM
120	260	55	610	620	69.5	NU 324 ECJ
120	260	55	610	620	69.5	NU 324 ECM
120	260	55	610	620	69.5	NU 324 ECP
120	260	55	610	620	69.5	NU 324 ECPH
120	260	55	610	620	69.5	NUP 324 ECJ
120	260	55	610	620	69.5	NJ 324 ECML
120	260	55	610	620	69.5	NU 324 ECML
120	260	55	610	620	69.5	NUP 324 ECML

Principal dimensions			Basic load ratings		Fatigue load limit	Designation
			dynamic	static
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]
120	260	86	915	1040	116	NJ 2324 ECM
120	260	86	915	1040	116	NU 2324 ECM
120	260	86	915	1040	116	NJ 2324 ECML
120	260	86	915	1040	116	NU 2324 ECML
120	260	86	915	1040	116	NUP 2324 ECML
120	310	72	644	735	78	NU 424
127	228.6	34.925	297	380	42.5	CRL 40 AMB
127	254	50.8	484	585	65.5	CRM 40 AMB
130	200	33	165	224	25	NJ 1026 M
130	200	33	165	224	25	NJ 1026 ML
130	200	33	165	224	25	NU 1026 ML
130	230	40	415	455	51	N 226 ECP
130	230	40	415	455	51	NJ 226 ECJ
130	230	40	415	455	51	NJ 226 ECM
130	230	40	415	455	51	NJ 226 ECP
130	230	40	415	455	51	NU 226 ECJ
130	230	40	415	455	51	NU 226 ECM
130	230	40	415	455	51	NU 226 ECP
130	230	40	415	455	51	NUP 226 ECJ
130	230	40	415	455	51	NUP 226 ECM
130	230	40	415	455	51	NUP 226 ECP
130	230	40	415	455	51	NJ 226 ECML
130	230	40	415	455	51	NU 226 ECML
130	230	40	415	455	51	NUP 226 ECML
130	230	64	610	735	83	NJ 2226 ECP
130	230	64	610	735	83	NU 2226 ECP
130	230	64	610	735	83	NUP 2226 ECP
130	230	64	610	735	83	NJ 2226 ECML
130	230	64	610	735	83	NU 2226 ECML
130	230	64	610	735	83	NUP 2226 ECML

Principal dimensions			Basic load ratings		Fatigue load limit	Designation
			dynamic	static
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]
130	280	58	720	750	81.5	N 326 ECM
130	280	58	720	750	81.5	N 326 ECP
130	280	58	720	750	81.5	NJ 326 ECJ
130	280	58	720	750	81.5	NJ 326 ECM
130	280	58	720	750	81.5	NU 326 ECJ
130	280	58	720	750	81.5	NU 326 ECM
130	280	58	720	750	81.5	NU 326 ECP
130	280	58	720	750	81.5	NJ 326 ECML
130	280	58	720	750	81.5	NU 326 ECML
130	280	58	720	750	81.5	NUP 326 ECML
130	280	93	1060	1250	137	NJ 2326 ECPA
130	280	93	1060	1250	137	NJ 2326 ECML
130	280	93	1060	1250	137	NU 2326 ECML
130	280	93	1060	1250	137	NUP 2326 ECML
140	210	33	172	245	27	NU 1028 M
140	210	33	179	255	28	NU 1028 ML
140	250	42	450	510	57	NJ 228 ECJ
140	250	42	450	510	57	NU 228 ECJ
140	250	42	450	510	57	NU 228 ECM
140	250	42	450	510	57	NUP 228 ECJ
140	250	42	450	510	57	NUP 228 ECM
140	250	42	450	510	57	NJ 228 ECML
140	250	42	450	510	57	NU 228 ECML
140	250	42	450	510	57	NUP 228 ECML
140	250	68	655	830	93	NJ 2228 ECML
140	250	68	655	830	93	NU 2228 ECML
140	250	68	655	830	93	NUP 2228 ECML
140	300	62	780	830	88	NJ 328 ECJ
140	300	62	780	830	88	NJ 328 ECM
140	300	62	780	830	88	NU 328 ECJ

Double Row Cylindrical Roller Bearings

Principal dimensions				Basic load ratings		Fatigue load limit	Designation
				dynamic	static
d[mm]	D[mm]	B[mm]	C[mm]	C[kN]	C0[kN]	Pu[kN]
160	230	130	130	842	1340	143	314190
260	440	180		2200	3900	365	NNU 4152 M/W33
280	460	180		2550	4750	440	NNU 4156 K30M/W33
280	460	180		2550	4750	440	NNU 4156 M/W33
280	470	200		2700	5100	455	315976 B
300	460	180		2600	5500	490	BC2B 320119
300	500	200		2860	5300	455	NNU 4160 K30M/W33
300	500	200		2860	5300	455	NNU 4160 M/W33
320	440	118		1020	2360	228	NNUP 4964 B/HB1W33
320	460	120		1720	3600	335	BC2B 322216
320	480	175		2460	5400	510	315583 C
320	540	218		3410	6200	530	NNU 4164 F
320	540	218		3410	6200	530	NNU 4164 K30F
340	520	305	200	3300	7100	610	BC2B 320118
340	580	243		4020	7500	620	NNU 4168 K30M/W33
340	580	243		4020	7500	620	NNU 4168 M/W33
350	520	150		2120	4500	400	BC2B 319878
360	500	125		1790	3650	335	BC2B 320075
360	500	125		2050	4300	360	BC2B 322217
360	600	243		4290	8500	695	NNU 4172 K30M
370	520	220	193	2750	6700	570	BC2B 319961
380	480	100		952	2550	212	NNU 4876 K/W33
380	480	100		952	2550	212	NNU 4876/HB1W33
380	540	130		2010	4300	380	BC2B 326131/HB1
380	540	200		2860	6800	585	BC2B 320041
380	620	243		4290	8500	680	NNU 4176 K30M
380	620	243		4290	8500	680	NNU 4176 M
400	500	100		968	2750	208	NNU 4880/HB1W33
400	500	100		968	2750	208	NNUP 4880/HB1W33
400	500	100		968	2750	208	NNU 4880 K/W33

Principal dimensions				Basic load ratings		Fatigue load limit	Designation
				dynamic	static
d[mm]	D[mm]	B[mm]	C[mm]	C[kN]	C0[kN]	Pu[kN]
400	560	205		3140	7800	655	314987 B
400	560	205		3140	7800	655	314987 C
400	600.19	200		3470	7200	600	BC2B 326363/HA4
400	650	250		4730	9500	750	NNU 4180 K30M/W33
400	650	250		4730	9500	750	NNU 4180 M/W33
410	600	220		3800	8650	720	316019
420	520	100		990	2850	196	NNU 4884 K/W33
420	520	100		990	2850	196	NNU 4884/W33
420	580	130		2380	5300	465	BC2B 326137/HB1
420	580	160		2330	5400	475	313555 A
420	600	220		3580	8800	720	314982
420	620	200		3470	7800	655	314391
440	540	100		1010	2900	186	NNU 4888 KM/W33
440	540	100		1170	3400	216	NNU 4888 M/W33
440	620	225		3910	9800	800	316077 A
440	640	230		4570	9800	780	BC2B 316521
440	720	280		5720	11800	900	NNU 4188 K30M/W33
440	720	280		5720	11800	900	NNU 4188 M/W33
457.2	660.4	228.6	203.2	3690	8150	640	BC2B 322969/HB1
460	580	118		1190	3250	224	NNU 4892 K/W33
460	580	118		1190	3250	224	NNU 4892/W33
460	650	235		4400	11200	900	316739 A
460	760	300		6440	12900	980	NNU 4192 K30M
460	760	300		6440	12900	980	NNU 4192 M
460	780	280		5610	10400	780	BC2-8004/HA1
480	700	260		5390	12500	950	316189
480	790	308		7040	14300	1080	NNU 4196 K30M/W33
480	790	308		7040	14300	1080	NNU 4196 M/W33
487.98	637	175		3000	7600	6100	BC2B 326196/HA1
490	694	174		3740	9000	750	316639 AG

Principal dimensions				Basic load ratings		Fatigue load limit	Designation
				dynamic	static
d[mm]	D[mm]	B[mm]	C[mm]	C[kN]	C0[kN]	Pu[kN]
500	680	225		4130	11000	880	314990 A
500	720	218		4730	10800	815	314419
500	830	325		7480	15000	1120	NNU 41/500 K30M/W33
500	830	325		7480	15000	1120	NNU 41/500 M/W33
530	780	225		4400	9500	695	BC2B 326064/HA1
530	780	250		4680	10200	765	315040 A
530	780	475	285	7210	17300	1290	BC2B 320117/HA4
530	870	335		7810	16000	1160	NNU 41/530 K30M/W33
530	870	335		7810	16000	1160	NNU 41/530 M/W33
550	800	260		5830	13400	980	316115
560	920	355		8800	18300	1320	NNU 41/560 K30M/W33X
560	920	355		8800	18300	1320	NNU 41/560 M/W33
600	820	287.5		6440	18000	1290	BC2B 319584/HA1
600	820	365		7810	21200	1530	BC2-8005/HB1
600	980	375		9900	21200	1460	NNU 41/600 K30M/W33
600	980	375		9900	21200	1460	NNU 41/600 M/W33
630	850	218		4400	11800	915	BC2-8012/HB1
630	1030	400		11000	24000	1630	NNU 41/630 K30M/W33
630	1030	400		11000	24000	1630	NNU 41/630 M/W33
650	920	335		8580	23200	1600	BC2B 326894/HB1
660	880	225		4180	11800	830	313477 B
670	1090	412		12100	25500	1730	NNU 41/670 K30M/W33
670	1090	412		12100	25500	1730	NNU 41/670 M/W33
690	980	365		10500	27000	1830	BC2-8074/HA5
690	980	550	357.5	9900	27000	1830	BC2-8015/HB1
710	1150	438		13400	28500	1900	NNU 41/710 K30M/W33
710	1150	438		13400	28500	1900	NNU 41/710 M/W33
750	1000	250		6160	16600	1120	314420
750	1220	475		16100	35500	2320	NNU 41/750 K30M/W33
750	1220	475		16800	36500	2400	NNU 41/750 M/W33

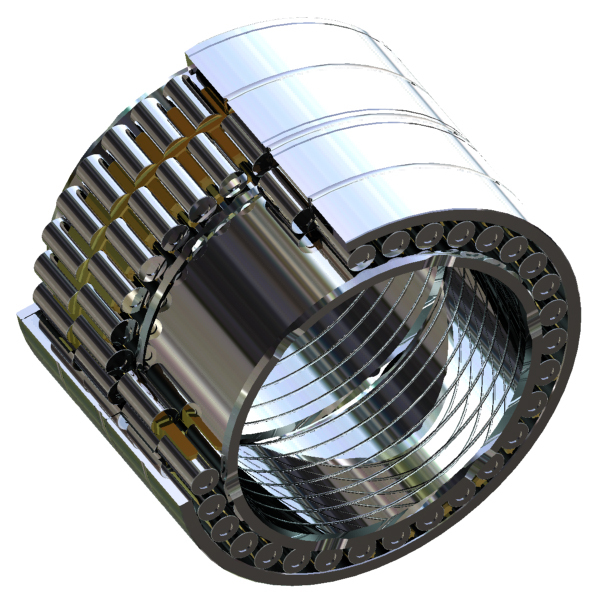

Four Row Cylindrical Roller Bearings

Principal dimensions				Basic load ratings		Fatigue load limit	Designation
				dynamic	static
d[mm]	D[mm]	B[mm]	C[mm]	C[kN]	C0[kN]	Pu[kN]
160	230	130	130	842	1340	143	314190
160	230	168	168	1120	2200	240	315189 A
165.1	225.45	168.3	168.3	1100	2240	240	315642/VJ202
180	260	168	168	1380	2500	265	313812
200	270	170	170	1250	2700	275	314553
200	280	170	170	1470	3000	305	314385
200	280	200	200	1650	3350	345	313893
200	290	192	192	1680	3200	320	313811
220	310	192	192	1830	3650	360	313839
230	330	206	206	2010	4000	390	313824
260	370	220	220	2330	4650	465	313823
280	390	220	220	2420	5000	490	313822
280	420	250	250	3690	6550	640	NNUD 6056 ECMAS/P53
300	420	300	300	4020	8800	850	314484 D
340	450	250	250	2550	6000	550	BC4-8050
340	480	350	350	4950	11000	1020	314485 C
340	500	370	370	5230	11800	1080	BC4B 322261/HB1
350	500	380	380	5280	11400	1040	314563/VJ202
350	500	410	410	5830	13700	1200	BC4B 322777/HB1
350	520	300	300	4680	9000	800	BC4B 326909 A/HA3
350	520	300	300	4680	9000	800	BC4B 326909/HA3
355.6	482.6	269.87	269.87	2970	6400	585	BC4-8022/HA1
356.67	550	400	400	5280	15000	1290	BC4B 457939 VAA
360	500	250	250	3910	7350	670	BC2B 320075/VJ202
360	500	250	250	4400	8500	780	BC2B 322217/VJ202
380	540	400	380	6050	14000	1200	BC4B 320989/HA3
380	540	400	400	5720	13700	1180	BC4B 313511 B
380	540	400	400	6160	15000	1290	BC4B 326366/HB1
380	560	325	325	5230	10600	930	BC4B 322264/HB1
382.5	590	450	450	6930	16300	1430	319352

Principal dimensions				Basic load ratings		Fatigue load limit	Designation
				dynamic	static
d[mm]	D[mm]	B[mm]	C[mm]	C[kN]	C0[kN]	Pu[kN]
390	540	320	320	5280	12200	1040	BC4B 322498
400	560	300	300	4680	10200	900	BC4-8059
400	590	440	440	7920	16600	1400	315802/VJ202
420	580	320	320	4680	10800	950	313555 B/VJ202
420	580	320	320	4680	10800	950	313555 C/VJ202
420	600	440	440	7210	17600	1460	313513
431.5	571.5	300	300	4460	10200	880	BC4B 326361 B/HA1
431.5	571.5	310	310	4460	10200	880	BC4-8037/HA1VA907
440	660	340	340	7210	13700	1080	635043
450	590	300	300	3910	12000	1020	315811 E
460	650	424	424	8250	18300	1530	315196 A
460	650	460	424	7810	18300	1530	BC4B 322993 A/HA7
475	600	368	368	5500	14600	1270	BC4B 326261/HA1
475	600	392	392	5500	14600	1270	BC4-8003/HA1VA907
480	680	420	420	9130	19300	1500	319320
480	680	500	500	9900	25000	1930	316624
487.98	637	350	350	6440	15300	1220	BC2B 326196/HA1VJ202
500	650	260	260	4400	10200	850	319254/VJ202
500	670	450	450	8250	22000	1800	316083 A
500	670	480	450	8250	22000	1800	BC4B 322039/HA1
500	680	450	450	8250	22000	1800	BC4B 316515
500	720	400	400	8580	17600	1320	BC4B 322066
500	738	500	500	10800	23200	1760	BC4B 326853/HB1
510	680	500	500	9680	26000	2080	BC4B 319411
510	730	520	520	10200	22000	1660	BC4-8009/HB1
510	760	550	550	12100	26500	2000	BC4-8007/HB1
529.91	870	670	670	16800	33500	2450	312844/VJ202
536.176	762.03	558.8	558.8	11400	29000	2160	313535 D
550	740	510	510	11000	27000	2160	316691
556	800	580	580	10500	25500	1860	BC4-8046/HB1

Principal dimensions				Basic load ratings		Fatigue load limit	Designation
				dynamic	static
d[mm]	D[mm]	B[mm]	C[mm]	C[kN]	C0[kN]	Pu[kN]
559.84	920	710	710	20100	45500	3250	313189 A
560	820	600	600	14200	34000	2450	BC4B 322930/HA4
571.627	870	640	640	13400	40500	2900	BC4B 319446
600	820	575	575	14000	36000	2550	315175 C
600	870	578	540	13200	31500	2240	BC4B 322497/HA4
606.667	920	640	640	16500	45000	3100	315526
620	820	475	475	10100	26500	1900	BC4-8041/HA4
633.334	960	680	680	16800	45000	3150	BC4B 457969
660	820	440	440	8090	22800	1760	239509 FA
750	1090	750	750	21600	51000	3400	BC4-8066/HA3
759	1210	740	740	25500	85000	3800	313685 B
760	1080	790	790	23800	65500	4400	312979 D
780	1070	780	780	24200	61000	4050	BC4-8015/HB1
820	1100	745	720	21200	57000	3750	BC4B 316341/HA4
820	1130	800	800	24200	68000	4400	BC4B 320455
820	1130	825	800	24200	68000	4400	319313
850	1150	840	840	27500	75000	4800	315826 B
850	1180	850	850	28100	73500	4650	BC4-8021/HB1
900	1280	780	780	28600	64000	4050	BC4-8067/HA3
937.5	1270.25	825.5	825.5	28100	83000	5300	315265
1040	1440	1000	1000	38000	93000	5700	BC4-8062/HA1

Tapered Roller Bearings

Single Row Tapered Roller Bearings

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	T[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
92.075	152.4	39.688	237	305	33.5	3400	4300	598/592 A
95	130	23	121	173	18.6	3800	4500	32919
95	145	32	206	270	30.5	3400	4300	32019 X
95	145	39	272	375	40.5	3400	4300	33019
95	170	34.5	266	275	31.5	3200	3800	30219
95	170	45.5	348	390	43	3200	3800	32219
95	170	58	460	560	62	2800	3800	33219
95	200	49.5	314	355	39	2400	3400	31319
95	200	49.5	353	390	42.5	2600	3400	30319
95	200	71.5	535	670	72	2400	3400	32319
95.25	152.4	39.688	237	305	33.5	3400	4300	594 A/592 A
95.25	152.4	39.688	237	305	33.5	3400	4300	594/592 A
95.25	168.275	41.275	288	365	39	3000	3800	683/672
99.975	156.975	42	303	400	42.5	3200	4000	HM 220149/110
100	140	25	147	204	22.4	3400	4300	32920
100	145	24	154	190	20.8	3400	4300	T4CB 100
100	150	32	209	280	31	3200	4000	32020 X
100	150	39	278	390	41.5	3400	4000	33020
100	165	47	383	480	52	3200	3800	T2EE 100
100	180	37	304	320	36	3000	3600	30220
100	180	49	390	440	48	3000	3600	32220
100	180	63	532	655	71	2600	3600	33220
100	215	51.5	431	490	53	2400	3200	30320
100	215	56.5	399	465	51	2200	3000	31320 X
100	215	77.5	617	780	83	2200	3200	32320
101.6	168.275	41.275	288	365	39	3000	3800	687/672
101.6	212.725	66.675	619	830	88	2200	3000	HH 224335/310
105	145	25	149	212	22.8	3400	4000	32921
105	160	35	248	335	37.5	3200	3800	32021 X
105	160	43	303	430	45.5	3200	3800	33021
Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	T[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
105	190	39	333	355	40	2800	3400	30221
105	190	53	443	510	55	2800	3400	32221
105	225	53.5	462	530	57	2200	3000	30321
105	225	81.5	645	815	85	2000	3000	32321
107.95	165.1	36.512	256	355	37.5	3000	3600	56425/56650
109.975	179.975	41.275	307	415	42.5	2800	3400	64432/64708
110	150	25	154	224	24	3200	4000	32922
110	170	38	288	390	40	3000	3600	32022 X
110	170	47	343	500	53	3000	3600	33022
110	180	56	455	630	65.5	2800	3400	33122
110	200	41	327	405	43	2400	3200	30222
110	200	56	491	570	61	2600	3200	32222
110	240	54.5	507	585	62	2200	2800	30322
110	240	63	491	585	61	1900	2800	31322 X
110	240	84.5	675	830	86.5	1900	2800	32322
114.3	177.8	41.275	307	415	42.5	2800	3400	64450/64700
114.3	180.975	34.925	227	280	30	2800	3400	68450/68712
114.3	212.725	66.675	626	765	81.5	2600	3200	938/932
120	165	29	204	305	32	3000	3600	32924
120	170	27	195	250	26.5	2800	3600	T4CB 120
120	180	38	299	415	42.5	2800	3400	32024 X
120	180	48	356	540	56	2800	3400	33024
120	215	43.5	417	465	49	2400	3000	30224
120	215	61.5	573	695	72	2400	3000	32224
120	260	59.5	601	710	73.5	2000	2600	30324
120	260	68	578	695	72	1700	2400	31324 X
120	260	90.5	855	1120	110	1800	2600	32324
127	182.562	39.688	281	440	44	2600	3200	48290/48220
130	180	32	245	365	38	2600	3200	32926
130	200	45	388	540	55	2400	3000	32026 X

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	T[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
130	200	55	470	680	69.5	2400	3000	33026
130	230	43.75	451	490	51	2200	2800	30226
130	230	67.75	590	830	85	2000	2800	32226
130	280	63.75	679	800	81.5	1800	2400	30326
130	280	72	647	780	80	1600	2400	31326 X
130	280	98.75	1019	1340	132	1600	2400	32326
133.35	177.008	25.4	166	280	28	2600	3200	L 327249/210
133.35	196.85	46.038	395	585	60	2400	3000	67391/67322
139.7	236.538	57.15	629	850	86.5	2200	2600	HM 231132/110
140	190	32	252	390	40	2600	3000	32928
140	195	29	241	325	33.5	2400	3000	T4CB 140
140	210	45	404	585	58.5	2400	2800	32028 X
140	250	45.75	451	570	58.5	1900	2600	30228
140	250	71.75	691	1000	100	1900	2600	32228
140	300	77	737	900	90	1500	2200	31328 X
140	300	107.75	1220	1660	156	1600	2200	32328
150	210	32	287	390	40	2200	2800	T4DB 150
150	210	38	346	530	52	2200	2800	32930
150	225	48	456	655	65.5	2200	2600	32030 X
150	225	59	487	865	85	2000	2600	33030
150	270	49	455	560	57	1800	2400	30230
150	270	77	782	1140	112	1700	2400	32230
150	320	72	879	1060	104	1600	2000	30330
150	320	82	832	1020	100	1400	2000	31330 X
152.4	203.2	41.275	251	480	45.5	2400	2800	LM 330448/410
158.75	205.583	23.812	168	280	27	2200	2800	L 432348/310
158.75	205.583	23.813	168	280	27	2200	2800	L 432349/310
160	220	32	257	415	41.5	2000	2600	T4DB 160
160	220	38	349	540	53	2200	2600	32932
160	240	51	532	780	76.5	2000	2400	32032 X

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	T[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
160	290	52	566	735	72	1600	2200	30232
160	290	84	934	1400	132	1600	2200	32232
160	340	75	970	1180	114	1500	2000	30332
165.1	336.55	92.075	1198	1700	156	1400	1900	HH 437549/510
170	230	32	307	440	43	2000	2600	T4DB 170
170	230	38	351	585	55	2000	2400	32934
170	260	57	625	915	88	1900	2200	32034 X
170	310	57	657	865	83	1500	2000	30234
170	310	91	1075	1630	150	1500	2000	32234
178.595	265.112	51.595	532	880	85	1700	2200	M 336948/912
179.934	265.112	51.595	532	880	85	1700	2200	M 336949/912
180	240	32	309	450	44	2000	2400	T4DB 180
180	250	45	435	735	68	1900	2200	32936
180	280	64	793	1160	110	1700	2200	32036 X
180	320	57	629	815	80	1500	2000	30236
180	320	91	1069	1630	150	1400	1900	32236
187.325	282.575	50.8	427	695	67	1600	2000	87737/87111
190	260	45	443	765	72	1800	2200	32938
190	260	46	443	765	72	1800	2200	JM 738249/210
190	290	64	806	1200	112	1600	2000	32038 X
190	340	60	763	1000	95	1400	1800	30238
190	340	97	1267	1930	176	1300	1800	32238
190.5	282.575	50.8	427	695	67	1600	2000	87750/87111
196.85	241.3	23.812	189	315	29	1900	2400	LL 639249/210
198.298	279.4	46.038	465	830	76.5	1600	2000	67981/67919
199.949	279.4	46.038	465	830	76.5	1600	2000	67982/67919
200	270	37	401	600	57	1700	2200	T4DB 200
200	280	51	588	950	88	1700	2000	32940
200	310	70	800	1370	127	1400	1900	32040 X
200	360	64	845	1120	106	1300	1700	30240

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	T[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
200	360	104	1300	2000	180	1300	1700	32240
203.2	282.575	46.038	465	830	76.5	1600	2000	67983/67920
206.375	282.575	46.038	465	830	76.5	1600	2000	67985/67920
206.375	336.55	98.425	1230	2160	190	1300	1800	H 242649/610
220	300	51	601	1000	91.5	1500	1900	32944
220	340	76	955	1660	150	1300	1700	32044 X
220	400	72	1059	1400	127	1200	1600	30244
220	400	114	1720	2700	232	1100	1500	32244
230.188	317.5	47.625	556	980	90	1300	1800	LM 245846/810
231.775	317.5	47.625	556	980	90	1300	1800	LM 245848/810
240	320	42	458	815	73.5	1300	1700	T4EB 240
240	320	51	624	1080	96.5	1400	1700	32948
240	360	76	989	1800	156	1200	1600	32048 X
240	440	127	1918	3350	270	1000	1300	32248
254	533.4	133.35	2012	2750	228	800	1100	HH 953749/710
255.6	342.9	57.15	698	1400	125	1200	1600	M 349547/510
257.175	342.9	57.15	698	1400	125	1200	1600	M 349549/510
257.175	358.775	71.438	1030	1760	156	1300	1600	M 249747/710
260	360	63.5	910	1530	134	1300	1600	32952
260	400	87	1241	2200	190	1100	1400	32052 X
260	480	137	2200	3650	300	900	1200	32252 J2
260	480	137	2340	3650	300	900	1200	32252
260	540	109	2120	3050	250	850	1300	BT1B 332973
263.525	325.438	28.575	273	550	48	1400	1700	38880/38820
280	420	87	1288	2360	200	1000	1300	32056 X
280	500	137	2240	3900	310	850	1200	32256 J2
280	500	137	2410	3900	310	850	1200	32256
292.1	374.65	47.625	539	1140	98	1100	1500	L 555249/210
300	420	76	1126	2240	186	950	1300	32960
300	460	100	1644	3000	245	900	1200	32060 X

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	T[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
300	495.3	141.288	2330	4550	355	850	1300	HH 258248/210
300	540	149	2750	4750	365	800	1100	32260 J2/HA1
304.8	406.4	63.5	775	1700	143	1000	1300	LM 757049/010
317.5	447.675	85.725	1363	2700	220	900	1200	HM 259048/010/HA4
320	440	76	1156	2360	193	900	1200	32964
320	480	100	1663	3100	250	850	1100	32064 X
320	580	159	3353	5500	415	750	1000	32264
330.2	482.6	85.725	1210	2500	204	850	1200	EE 526130/526190
333.375	469.9	90.488	1428	2850	232	850	1200	HM 261049/010
340	460	76	1163	2400	196	850	1200	32968
342.9	450.85	66.675	1000	2200	180	900	1200	LM 361649/610
343.154	450.85	66.675	1000	2200	180	900	1200	LM 361649 A/610
346.075	488.95	95.25	1533	3150	255	850	1100	HM 262749/710
355.65	482.65	60.32	572	1200	98	850	1300	431884 A
360	480	76	1191	2550	204	800	1100	32972
381	479.425	49.213	638	1500	120	800	1100	L 865547/512
384.175	546.1	104.775	1870	4150	320	750	1100	HM 266449/410
406.4	508	61.912	887	2120	166	750	1000	L 467549/510
406.4	549.275	85.725	1467	3050	236	700	950	LM 567949/910/HA1
406.4	574.675	76.2	935	2040	163	700	1000	EE 285160/285226
406.4	762	180.975	3690	6100	440	500	700	H 969249/210/HA4
415.925	590.55	114.3	2256	4800	360	670	900	M 268749/710
430.212	603.25	76.2	1100	2320	186	670	950	EE 241693/242375
431.8	571.5	74.612	1145	2550	204	670	900	LM 869448/410
457.2	573.088	74.612	1205	3000	228	670	900	L 570649/610
457.2	603.25	85.725	1541	3400	255	630	850	LM 770949/910
457.2	615.95	85.725	1593	3800	280	600	800	LM 272235/210
457.2	660.4	91.28	1790	3650	275	600	800	EE 737181/737260
479.425	679.45	128.588	2750	6300	455	560	850	BT1B 332529/HA1
479.425	717.55	136.525	3030	6800	490	530	800	BT1-8003/HA1

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	T[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
482.6	634.873	80.962	1584	3650	270	600	800	EE 243190/243250
488.95	634.873	84.138	1450	3650	265	600	850	LM 772748/710/HA1
498.475	634.873	80.962	1470	3650	270	600	850	EE 243196/243250/HA2
498.475	634.873	80.962	1470	3650	280	600	850	EE 243196 AX/243250
520.7	736.6	88.9	1650	3350	250	530	750	EE 982051/982900
536.575	761.873	146.05	3360	8000	550	500	670	M 276449/410
536.575	820	152	3910	7800	540	450	670	BT1B 328017/HA4
539.75	635	50.8	781	2160	160	560	850	LL 575349/310
549.199	692.15	80.963	1340	3450	255	530	1100	L 476549 AX/510
549.275	692.15	80.963	1340	3450	250	530	700	L 476549/510
558.8	736.6	88.108	1963	4150	305	500	670	EE 843220/843290
558.8	736.6	104.775	2482	5700	405	500	670	LM 377449/410
607.72	787.4	93.662	2160	5300	380	450	670	EE 649239/649310
609.6	787.4	93.663	2160	5300	380	450	600	EE 649240/649310
660.4	812.8	95.25	2086	5600	380	430	560	L 281147/110
660.4	1000	152.4	4652	9500	620	360	480	BT1B 334140/HA4
679.45	901.7	142.875	3580	9000	600	380	560	LM 281849/810/HA4
680	1000	190	5610	12700	800	360	500	BT1B 332787/HA4
682.625	1080	200	6710	13200	830	320	480	BT1B 332705/HA4
710	950	113	2860	6550	450	360	530	BT1B 332890/HA1
749.3	990.6	159.5	4903	12000	750	340	450	LM 283649/610/HA1
760	889	69.85	1230	3800	255	560	560	LL 483448/418
760	889	88.9	1992	5850	380	360	500	L 183448/410
762	889	69.85	1320	3800	255	380	500	LL 483449/418
774.7	965.2	93.662	2058	4900	335	340	480	EE 752305/752380
801.688	914.4	58.738	1100	3550	232	360	480	LL 584449/410
838.2	1041.4	93.663	2140	5200	345	320	430	EE 763330/763410
857.25	1092.2	120.65	2972	7350	475	300	400	EE 157337/157430
900	1180	122	3960	9150	585	260	360	BT1B 328214/HA5
977.9	1130.3	66.675	1450	4400	285	260	380	LL 687949/910

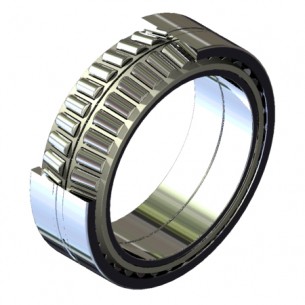

	Double Row Tapered Roller Bearings
Principal dimensions				Basic load ratings		Fatigue load limit	Designation	Design variant/feature
				dynamic	static
d[mm]	D[mm]	T[mm]	C[mm]	C[kN]	C0[kN]	Pu[kN]
101.6	146.05	49.212	38.94	267	375	40.5	BT2B 332767 A	TDO/D
228.6	488.95	254	152.4	3143	4500	390	331945	TDO/D
260	480	284	220	4330	7350	600	BT2B 328130	TDO
260.35	422.275	178.592	139.7	2240	4050	355	BT2B 328187/HA2	TDO/D
300.038	422.275	174.625	136.525	2177	4750	400	BT2B 332504/HA2	TDO/XDC
317.5	447.675	180.975	146.05	2521	5400	440	BT2B 332516 A/HA1	TDO/XDC
333.375	469.9	190.5	152.4	2642	5700	465	331775 B	TDO/XDC
340	460	160	128	2196	4900	400	BT2B 332830	TDO/D
346.075	488.95	200.025	158.75	2835	6300	510	331981	TDO/D
355.6	501.65	155.575	107.95	1976	4250	345	BT2B 332506/HA2	TDO/D
360	480	160	128	2211	5000	405	BT2B 332831	TDO/D
368.249	523.875	214.312	169.862	3380	7500	585	BT2B 332603/HA1	TDO/D
371.475	501.65	155.575	107.95	1976	4250	345	331606 A	TDO/XDC
384.175	546.1	222.25	177.8	3724	8300	640	331197 A	TDO/D
400	540	170	135	2782	6300	490	BT2-8143/HA1	TDO/D
406.4	539.75	142.875	101.6	1817	4400	345	BT2B 328389	TDO/XDC
415.925	590.55	244.475	193.675	4175	9650	720	331656	TDO/XDC
431.8	571.5	155.575	111.125	1145	5100	405	BT2B 332604/HA1	TDO/D
431.8	571.5	192.088	146.05	2847	6950	530	BT2B 332237 A/HA1	TDO/XDC
447.675	635	257.175	206.375	4400	11000	800	BT2B 332176 A	TDO/XDC
479.425	679.45	276.225	222.25	5010	12700	915	331657	TDO/XDC
498.475	634.873	177.8	142.875	2750	7350	540	331605 B	TDO/XDC
501.65	711.2	292.1	231.775	5500	13700	980	BT2B 332605 A/HA1	TDO/XDC
536.575	761.873	311.15	247.65	6270	16000	1100	BT2B 332446	TDO/DC
558.8	736.6	225.425	177.8	4290	11600	815	331640 A	TDO/DC
571.5	812.8	333.375	263.525	6440	16000	1080	BT2B 332447	TDO.1/DC
602.945	787.4	206.375	158.75	4020	10600	750	331576 B	TDO/D
609.6	820	206.375	158.75	4020	10600	750	331500	TDO/D
635	990.6	339.725	212.725	8090	16000	1060	BT2B 332493/HA4	TDOS.1/D3
711.2	914.4	190.5	139.7	3800	9650	670	BT2B 328028/HA1	TDO/D
	Four Row Tapered Roller Bearings

Principal dimensions				Basic load ratings		Fatigue load limit	Designation	Design variant/feature
				dynamic	static
d[mm]	D[mm]	B[mm]	T[mm]	C[kN]	C0[kN]	Pu[kN]
139.7	200.025	157.162	160.34	858	2080	204	331138 AG	TQO/GWI
177.8	247.65	192.088	192.088	1020	2500	232	BT4-0010 G/HA1C400VA903	TQOS/GW
177.8	247.65	192.088	192.088	1230	3000	280	331480 G	TQO/GWI
198.438	284.162	225.425	225.425	1760	3750	355	BT4-0027 AG/HA1	TQO/GWI
206.375	282.575	190.5	190.5	1140	2500	240	BT4-0013 G/HA1C400VA903	TQOS/GWI
206.375	282.575	190.5	190.5	1400	3350	305	BT4-0021 G/HA1	TQO/WI
220	295	315	315	1860	4050	360	BT4-0035 E8/C355	TQOS/GW
220.662	314.325	239.712	239.712	2120	4000	365	BT4-0040 E8/C355	TQOS/GW
220.662	314.325	239.712	239.712	2200	5200	465	331156 G	TQO/GWI
240	338	248	248	2550	5500	500	BT4-0020/HA1	TQON/W
241.478	349.148	228.6	228.6	2160	5000	455	330782 AG	TQO/GWI
244.475	327.025	193.675	193.675	1830	4300	390	330862 B	TQO/WI
254	358.775	268.875	268.875	3050	5700	510	BT4-0039 E8/C355	TQOS/GW
254	358.775	269.875	269.875	2860	7100	620	331275 B	TQO/WI
254	358.775	269.875	269.875	3050	5700	510	BT4-0039 E81/C355
260	440	298.5	298.5	3910	7350	670	BT4B 328551/HA1	TQO/WI
260.35	422.275	314.325	317.5	4130	8000	710	BT4B 331487 G/HA1	TQO/GWI
266.7	355.6	230.188	228.6	1870	4650	415	BT4-0014 G/HA1C400VA903	TQOS/GWI
266.7	355.6	230.188	228.6	2200	5600	500	BT4B 328209 G/HA1C455	TQO/GWI
269.875	381	282.575	282.575	3080	7500	655	BT4B 331168 B	TQO/WI
276.225	393.7	269.875	269.875	2750	5850	530	BT4-0012 G/HA1C500VA901	TQOS/GWISI
279.4	393.7	269.875	269.875	2750	5850	530	BT4-0011 G/HA1C500VA901	TQOS/GWISI
279.578	380.898	244.475	244.475	2290	6400	540	330540 AG	TQO/GWI
280	406.4	298.45	298.45	4150	9000	750	BT4-0026 A/PEX	TQO/WI
280	460	324	324	4680	9300	815	BT4B 332441 G/HA1	TQO/GWI
285	400	340	340	3650	7650	655	BT4-8116 E1/C525	TQOSN/GWSI
285.75	380.898	244.475	244.475	2200	5500	475	BT4-0015 G/HA1C400VA903	TQOS/GW
285.75	380.898	244.475	244.475	2290	6400	540	330337 AG	TQO/GWI
288.925	406.4	298.45	292.45	3580	9000	750	BT4B 331452 G/HA1	TQO/GWI
292.1	422.275	269.875	269.875	3800	8000	680	BT4B 331968 BG/HA1	TQON/GW


Principal dimensions				Basic load ratings		Fatigue load limit	Designation	Design variant/feature
				dynamic	static
d[mm]	D[mm]	B[mm]	T[mm]	C[kN]	C0[kN]	Pu[kN]
300	440	280.988	279.4	3190	7800	670	BT4B 328725 G/HA1	TQO/GWI
300	440	280.99	279.4	3080	6700	585	BT4B 334126 G/HA1VA901	TQOS/GWISI
304.648	438.048	280.99	279.4	3080	6700	585	BT4B 334008 G/HA1VA901	TQOS/GWISI
304.648	438.048	280.99	279.4	3080	6950	585	331492	TQO/GWI
304.8	419.1	269.875	269.875	2920	6700	570	BT4-8057 G/HA1VA901	TQOSN/GWSI
304.8	495.3	342.9	342.9	5120	9300	780	BT4-8061 G/HA1C400VA901	TQOSN/GWSI
304.8	501.65	336.55	336.55	4730	9300	780	BT4B 328909 G/HA1VA901	TQOS/GWISI
304.902	412.648	266.7	266.7	2700	6700	570	BT4-0016 G/HA1C445VA901	TQOS/GWISI
304.902	412.648	266.7	266.7	2970	7500	640	330758 BG	TQO/GWI
304.902	412.648	266.7	266.7	3190	7500	640	BT4-0004 G/HA1	TQON/GW
305	438.048	280.99	279.4	3080	6700	585	BT4B 334076 G/HA1VA901	TQOS/GWISI
310	430	310	310	2860	6550	570	BT4-8093 G/HA1VA901	TQOSN/GWSI
310	430	350	350	4750	9150	765	BT4-8127 E1/C700	TQOSN/GWSI
317.5	422.275	269.875	269.875	2860	6550	570	BT4B 334023 E1/C675	TQOSN/GWSI
317.5	422.275	269.875	269.875	3360	8150	680	330870 BG	TQON/GW
317.5	438.15	276.225	276.225	3520	8300	695	BT4B 328952 A/HA1	TQOT
317.5	447.675	327.025	327.025	4400	10800	880	BT4B 331161 AG/HA4	TQO/GWI
317.5	447.675	327.025	327.025	4730	10800	880	BT4B 331161 BG/HA1	TQON/GW
330.2	444.5	301.625	301.625	3690	9650	800	BT4B 332647 G/HA1	TQO/GWI
330.2	444.5	301.625	301.625	4250	8800	735	BT4-8174 E8/C675	TQOSN/GWSI
330.2	444.5	301.625	301.625	4250	8800	735	BT4-8174 E81/C675	TQOSN/GWSI
330.302	438.023	247.65	254	3400	6400	550	BT4-8113 E2/C500	TQOSN/GWSI
333.375	469.9	342.9	342.9	4130	10200	830	BT4-8017/HA1C600VA941	TQOSN/WILS
333.375	469.9	342.9	342.9	4897	11400	930	331381	TQO/GWI
340	520	323.5	323.5	5230	10400	880	BT4B 332963/HA1	TQO/WI
340	520	323.5	323.5	5610	10400	880	BT4B 332963 B/HA1	TQON/W
342.9	571.5	342.54	342.9	6270	11600	950	BT4B 331553/HA1	TQO/WI
343.052	457.098	254	254	2330	6000	510	BT4B 334106 G/HA1VA901	TQOS/GWISI
343.052	457.098	254	254	2510	6100	530	BT4B 334033 G/HA1VA901	TQOS/GWISI
343.052	457.098	254	254	3100	6400	540	BT4B 328817 EX1/C475	TQOSN/GWSI

Principal dimensions				Basic load ratings		Fatigue load limit	Designation	Design variant/feature
				dynamic	static
d[mm]	D[mm]	B[mm]	T[mm]	C[kN]	C0[kN]	Pu[kN]
343.052	457.098	254	254	3350	6400	540	BT4B 328817 E1/C475	TQOSN/GWSI
343.052	457.098	254	254	3450	6800	570	330661 E/C475	TQON/GW
343.052	457.098	254	254	3600	7100	600	BT4-8160 E8/C475	TQON/GW
343.052	457.098	254	254	3600	7100	600	BT4-8160 E81/C400	TQOSN/GWSI
343.052	457.098	254	254	3600	7100	600	BT4-8160 E81/C475	TQOSN/GWSI
343.052	457.098	323.85	254	2700	6400	540	BT4B 328986 G/HA1VA901	TQOES/GWISI
346.075	488.95	358.775	358.775	5280	12500	1020	BT4B 331228 G/HA1C200	TQO/GWI
347.662	469.9	292.1	292.1	3800	10200	830	331092 A	TQO/GWI
347.662	469.9	292.1	292.1	3910	8500	710	BT4-8070 G/HA1VA901	TQOSN/GWSI
350	480	420	420	4750	10200	815	BT4-8117 E1/C475	TQOSN/GWSI
355.6	482.6	265.113	269.875	3550	7500	620	BT4B 328870 EX1/C300	TQOSN/GWSI
355.6	482.6	265.113	269.875	4000	8000	655	330662 E/C480	TQON/GW
355.6	482.6	265.113	269.875	4150	8150	670	BT4-8162 E8/C480	TQON/GW
355.6	482.6	265.113	269.875	4150	8150	670	BT4-8162 E81/C480	TQOSN/GWSI
355.6	488.95	317.5	317.5	4130	10000	830	BT4B 328912 G/HA1VA901	TQOS/GWISI
355.6	488.95	317.5	317.5	4130	11000	880	331271	TQO/GWI
355.6	488.95	317.5	317.5	4130	11000	880	331271 BG	TQO/GWI
355.6	488.95	317.5	317.5	5100	10000	830	BT4B 328912 E1/C300	TQOSN/GWSI
355.6	488.95	317.5	317.5	5100	10000	830	BT4B 328912 E3/C675	TQOSN/GW
360	510	380	380	5610	14300	1120	332059	TQO/GWI
360	540	280	280	4400	9000	735	BT4B 328159/HA1	TQO/WI
360	540	325	325	5720	10800	900	BT4-8015 G/HA1	TQON/GW
368.3	523.875	382.588	382.588	6270	15000	1160	331159 A	TQO/GWI
374.65	501.65	250.825	260.35	3360	8150	670	BT4B 332188/HA1	TQO/GWI
380	540	300	300	4180	10000	800	BT4-8086 G/HA1	TQON/GW
380	560	325	325	5500	11800	950	BT4B 328294/HA1	TQO/WI
380	560	390	360	6710	13700	1080	BT4-8033 G/HA1	TQOEN/GW
384.175	546.1	400.05	400.05	6160	15000	1180	BT4-8025 G/HA1C300VA903	TQOSN/GW
384.175	546.1	400.05	400.05	6160	15000	1180	BT4-8025 G/HA1VA903	TQOSN/GW
384.175	546.1	400.05	400.05	6440	16600	1290	BT4B 334128/HA1	TQOT


Principal dimensions				Basic load ratings		Fatigue load limit	Designation	Design variant/feature
				dynamic	static
d[mm]	D[mm]	B[mm]	T[mm]	C[kN]	C0[kN]	Pu[kN]
384.175	546.1	400.05	400.05	8000	16600	1290	331149 E/C675	TQON/GW
385.762	514.35	317.5	317.5	3910	10000	780	BT4B 334042 E1/C575	TQOSN/GWSI
385.762	514.35	317.5	317.5	3910	10000	780	BT4B 334042 G/HA1VA901	TQOS/GWISI
395	545	268	288.9	3910	9500	750	BT4B 332824/HA1	TQO/GWI
395	545	268	288.9	4800	9500	750	BT4B 332824 E/C475	TQON/GW
400	600	308	308	5500	11000	865	BT4-8147 G/HA1	TQON/GW
406.4	546.1	288.925	288.925	4180	9500	750	BT4B 328838 BG/HA1VA902	TQOSN/GWISI
406.4	546.1	288.925	288.925	5100	10200	815	BT4-8161 E8/C500	TQON/GW
406.4	546.1	288.925	288.925	5100	10200	815	BT4-8161 E81/C500	TQOSN/GWSI
406.4	546.1	288.925	288.925	5100	10200	815	BT4-8171 E8/C500	TQON/GW
406.4	546.1	330	330	4020	10200	815	BT4B 334093 G/HA1VA901	TQOS/GWISI
406.4	546.1	330	330	4400	10200	815	BT4B 334093 BG/HA1VA902	TQOSN/GWISI
406.4	546.1	330	330	5010	13200	1000	BT4B 334092 AG/HA1	TQON/GW
406.4	546.151	288.925	288.925	5000	10200	815	BT4B 330650 E/C500	TQON/GW
406.4	562	381	381	5700	13200	1000	BT4-8126 E1/C575	TQOSN/GWSI
406.4	565.15	381	381	6050	15600	1220	BT4B 331347 AG/HA1	TQO/GWI
409.575	546.1	334.962	334.962	4840	12000	930	BT4B 329004 G/HA1VA901	TQOS/GWISI
409.575	546.1	334.962	334.962	5600	12000	930	BT4B 329004 E1/C575	TQOSN/GWSI
409.575	546.1	334.962	334.962	5700	13200	1000	BT4B 331333 E/C575	TQON/GW
409.575	546.1	334.962	334.962	5850	12500	965	BT4-8166 E8/C350	TQON/GW
409.575	546.1	334.962	334.962	5850	12500	965	BT4-8166 E81/C350	TQOSN/GWSI
409.575	546.151	334.962	334.962	5700	13200	1000	BT4B 331333 E/C350	TQON/GW
416	574	440	440	6050	17000	1270	BT4B 334130 G/HA1VA903	TQOS/GWI
420	560	437	437	5830	16300	1220	BT4B 328826 G/HA1	TQO/GWI
430	575	380	380	5230	14300	1100	BT4B 334095 G/HA4VA901	TQOS/GWISI
431.8	571.5	279.4	279.4	4650	10000	800	BT4-8169 E81/C450	TQOSN/GWSI
431.8	571.5	336.55	336.55	4950	14000	1060	BT4B 331226 AG/HA1	TQO/GWI
431.8	571.5	336.55	336.55	4950	14000	1060	BT4B 331226/HA1	TQO/GWI
431.8	571.5	336.55	336.55	5280	14000	1060	BT4B 331226 BG/HA1	TQON/GW
431.8	571.5	336.55	336.55	5850	13400	1020	BT4-8170 E81/C550	TQOSN/GWSI


Principal dimensions				Basic load ratings		Fatigue load limit	Designation	Design variant/feature
				dynamic	static
d[mm]	D[mm]	B[mm]	T[mm]	C[kN]	C0[kN]	Pu[kN]
431.8	571.5	400	400	4840	12700	980	BT4-8067 G/HA1VA902	TQOSNP/GWISI
431.8	635	440	355.6	6600	15000	1160	BT4B 334019 G/HA1	TQOE/GWI
440	580	360	360	6200	14300	1080	BT4-8124 E/C550	TQON/GW
440	580	420	420	6050	17600	1320	BT4B 328829/HA1	TQO/WI
440	590	480	480	7650	20000	1460	BT4B 334055 ABG/HA1VA902	TQOSN/GWISI
440	650	353.5	353.5	6600	15000	1160	332313	TQO/GWI
440	650	353.5	353.5	6710	13200	1020	BT4B 328944 G/HA1VA901	TQOS/GWISI
447.675	635	463.55	463.55	8250	22000	1600	330608 C	TQO/GWI
450	580	450	450	6160	19600	1400	BT4B 328161/HA1	TQO/WI
450	595	368	368	5280	13700	1040	BT4-8023 AG/HA1VA902	TQOSN/GWOY
450	595	368	368	5280	13700	1040	BT4-8023 G/HA1VA919	TQOSN/GWOY
450	595	368	368	6550	15300	1160	BT4-8173 E8/C725	TQOSN/GWSI
450	595	368	368	6550	15300	1160	BT4-8173 E81/C725	TQOSN/GWSI
450	595	368	368	6800	16300	1220	BT4B 332773 E/C725	TQON/GW
450	595	404	404	5940	16300	1220	BT4-8044 G/HA1VA902	TQOSN/GWISI
450	595	404	404	6800	16300	1220	BT4B 328365 EX/C725	TQO/GWI
457.2	596.9	276.225	279.4	4180	10800	830	331169 BG	TQO/GWI
457.2	596.9	276.225	279.4	4290	10000	780	BT4B 328827 ABG/HA1VA902	TQOSN/GWISI
457.2	596.9	276.225	279.4	4570	10800	830	331169 E/C500	TQON/GW
457.2	606	381	381	7500	16300	1250	BT4-8125 E1/C725	TQOSN/GWISI
460	610	360	360	6800	14300	1100	BT4-8111 E2/C725	TQOSN/GWISI
460	610	360	360	7500	16300	1250	BT4B 331977 E/C725	TQO/GWI
460	625	421	421	7210	20000	1460	BT4B 332502/HA1	TQO/WI
475	600	368	368	4730	14000	1040	BT4B 334078 G/HA1VA901	TQOS/GWISI
475	600	368	368	5720	16600	1250	BT4B 328913 BG/HA1C555	TQON/GW
475	660	450	450	8580	22400	1660	BT4B 329007/HA1	TQO/WI
479.425	679.45	495.3	495.3	8580	22400	1660	BT4B 334116 G/HA1VA901	TQOS/GWISI
479.425	679.45	495.3	495.3	9350	22500	1830	330886 B	TQO/GWI
482.6	615.95	330.2	330.2	6100	13700	1060	BT4B 328842 E1/C325	TQOSN/GWSI
482.6	615.95	330.2	330.2	6300	14300	1080	BT4-8163 E8/C725	TQON/GW


Principal dimensions				Basic load ratings		Fatigue load limit	Designation	Design variant/feature
				dynamic	static
d[mm]	D[mm]	B[mm]	T[mm]	C[kN]	C0[kN]	Pu[kN]
482.6	615.95	330.2	330.2	6300	14300	1080	BT4-8163 E81/C725	TQOSN/GWSI
482.6	615.95	330.2	330.2	6300	14300	1080	BT4-8163 E8A/C725	TQON/GW
482.6	615.95	330.2	330.2	6300	15300	1120	332096 E/C725	TQON/GW
482.6	615.95	402.05	402.05	5610	17300	1290	BT4B 328974 G/HA1VA901	TQOS/GWISI
482.6	615.95	406.4	330.2	4950	13700	1060	BT4B 328887 G/HA1VA901	TQOES/GWISI
482.6	615.95	419.1	330.2	4950	13700	1060	BT4B 334072 G/HA1VA901	TQOES/GWISI
482.6	615.95	419.1	330.2	5280	13700	1060	BT4B 334072 BG/HA1VA903	TQOESN/GW
482.6	615.95	420	420	5500	15300	1120	BT4-8062 G/HA1VA901	TQOSN/GWSI
482.6	630	420	420	6600	19300	1400	BT4B 328773 G/HA1	TQO/GWI
482.6	647.7	417.512	417.512	7650	20000	1460	BT4B 331259 BG/HA1C325	TQON/GW
488.95	622.3	365.125	365.125	6060	17300	1290	BT4B 328391 G/HA1	TQO/GWI
489.026	634.873	320.675	320.675	4020	11200	865	BT4B 334115 G/HA1VA901	TQOS/GWISI
489.026	634.873	320.675	320.675	6300	14600	1080	331090 E/C700	TQON/GW
490	625	385	385	7100	16300	1220	BT4-8135 E/C750	TQON/GW
500	670	400.05	387.35	7210	19300	1460	BT4-8056 G/HA1	TQOE/GWI
500	720	400	400	8250	20400	1460	BT4B 328524/HA1	TQO/WI
501.65	673.1	400.05	387.35	7210	19300	1460	BT4B 331499 G/HA1	TQO/GWI
501.65	711.2	520.7	520.7	10200	27500	1960	331081 A	TQO/GWI
510	655	377	379	7650	17600	1320	BT4-8167 E8/C775	TQON/GW
510	655	377	379	7650	17600	1320	BT4-8167 E81/C775	TQOSN/GWSI
510	655	377	379	7800	19000	1370	BT4B 331747 E/C775	TQON/GW
514.35	673.1	422.275	422.275	6820	19000	1370	BT4-8045 G/HA1VA901	TQOSN/GWSI
515	700	420	420	7920	21600	1560	BT4B 328965/HA1	TQOT
520.7	736.6	400.05	400.05	7480	19600	1460	BT4B 331243 A/HA1	TQO/GWI
530	680	440	440	8250	23600	1630	BT4-8043 G/HA1	TQON/GW
540	690	400	400	7480	21200	1500	331978 BG	TQON/GW
540	690	400	400	8150	19300	1400	BT4-8108 E/C625	TQON/GW
540	690	434	400	7040	21200	1500	BT4B 334038 G/HA3	TQOE/GWI
540	690	434	434	7040	21200	1500	BT4B 334028 G/HA1VA901	TQOS/GWISI
540	690	440	440	7480	21200	1500	BT4-8038 G/HA1VA901	TQOSN/GWSI


Principal dimensions				Basic load ratings		Fatigue load limit	Designation	Design variant/feature
				dynamic	static
d[mm]	D[mm]	B[mm]	T[mm]	C[kN]	C0[kN]	Pu[kN]
558.8	736.6	322.262	322.262	5830	14300	1060	BT4B 328864 G/HA4VA901	TQOS/GWISI
558.8	736.6	322.265	322.268	6270	16600	1220	331165 A	TQO/WI
558.8	736.6	322.265	322.268	6270	16600	1220	331165 AG	TQO/GWI
558.8	736.6	409.575	409.575	6600	20000	1400	BT4B 334080 G/HA1VA901	TQOS/GWISI
558.8	736.6	409.575	409.575	8580	23200	1630	BT4B 330993 AG/HA1	TQON/GW
558.8	736.6	455.612	457.2	7920	23200	1630	BT4B 334136 G/HA1VA901	TQOS/GWISI
558.8	736.6	455.612	457.2	8580	23200	1630	BT4-8022 G/HA1VA919	TQOSN/GWOY
560	700	405	405	8000	21200	1460	BT4-8153 E/C775	TQON/GW
560	920	618	618	16500	34000	2320	BT4B 328509/HA4	TQO.1/WI
560	920	618	618	17300	39000	2550	BT4-8123 E/C775	TQON/GW
571.5	812.8	593.725	593.725	11900	33500	2280	BT4B 334144 G/HA1VA901	TQOS/GWISI
571.5	812.8	593.725	593.725	13200	36000	2400	BT4B 332666/HA1	TQOT
584.2	730.25	342.9	349.25	5940	17000	1200	BT4B 331189 E/C600	TQO/GWI
584.2	762	396.875	401.638	7650	22400	1560	331148 A	TQO/GWI
584.2	901.7	523.08	539.747	13400	28000	2000	BT4B 328314 G/HA1	TQO.1/GWI
585.788	771.525	479.425	479.425	10200	27500	1900	BT4B 328888 BG/HA1VA901	TQOSN/GWSI
585.788	771.525	479.425	479.425	10600	30000	2040	BT4B 331093 BG/HA1	TQON/GW
595.312	844.55	615.95	615.95	17300	39000	2550	BT4B 331300 E/C775	TQON/GW
603.25	857.25	622.3	622.3	14700	40500	2700	331625	TQO.1/GWI
603.25	857.25	622.3	622.3	18300	40500	2700	BT4B 331625 E/C800	TQON/GW
609.6	787.4	361.95	361.95	6820	18600	1370	BT4B 328871 G/HA1VA901	TQOS/GWISI
609.6	787.4	361.95	361.95	7370	18600	1370	BT4B 328871 BG/HA1VA902	TQOSN/GWISI
609.6	787.4	361.95	361.95	7370	21200	1500	331175 A	TQO/GWI
609.6	787.4	361.95	361.95	7370	21200	1500	331175 BG/C355	TQO/GWI
609.6	813.562	479.425	479.425	9680	27500	1900	BT4B 334108 G/HA4VA901	TQOS/GWISI
609.6	813.562	479.425	479.425	10600	30500	2080	331925	TQO/GWI
620	800	363.5	363.5	7480	21600	1530	BT4B 328510/HA1	TQO/WI
625	815	480	480	13200	31000	2120	BT4-8031 E/C800	TQON/W
625	815	600	600	13200	31000	2120	BT4-8137 G/HA1	TQO/GWI
635	901.7	654.05	654.05	14500	41500	2700	BT4B 334141 G/HA1VA901	TQOS/GWISI


Principal dimensions				Basic load ratings		Fatigue load limit	Designation	Design variant/feature
				dynamic	static
d[mm]	D[mm]	B[mm]	T[mm]	C[kN]	C0[kN]	Pu[kN]
648	1030	592	592	16800	38000	2550	BT4-8064 G/HA1VA901	TQOS/GWISI
650	1030	560	560	16800	38000	2550	BT4B 332827 AG/HA1	TQO/GWI
650	1030	560	560	20800	38000	2550	BT4B 332827 E/C850	TQON/GW
650	1030	592	592	16800	38000	2550	BT4-8009 G/HA1VA901	TQOS/GWISI
650	1040	610	610	17600	36500	2500	BT4-8036 G/HA1	TQON/GW
650	1040	610	610	17600	36500	2500	BT4-8037 G/HA1VA901	TQOSN/GWSI
660	855	318.5	318.5	7040	18600	1320	BT4B 328511/HA1	TQO/WI
660	855	400.842	318.48	6270	17300	1220	BT4B 334002 G/HA1VA901	TQOES/GWISI
660	1070	648	648	19000	38000	2500	BT4-8060 G/HA4VA901	TQOSN.1/GWSI
660	1070	648.002	648.002	19400	41500	2750	BT4B 332833 G/HA4	TQON.1/GW
660.4	812.8	365.125	365.125	6710	22400	1530	331190	TQO/GWI
660.4	812.8	365.125	365.125	7210	20400	1430	BT4B 328977 BG/HA1VA901	TQOSN/GWSI
660.4	812.8	365.125	365.125	7210	22400	1530	BT4B 331190 BG/HA1	TQON/GW
676	910	620	620	14200	41500	2700	BT4B 332906/HA4	TQO.1/GWI
679.45	901.7	552.45	552.45	12100	36000	2400	BT4B 334015 G/HA1VA901	TQOS/GWISI
679.45	901.7	552.45	552.45	13200	36000	2400	BT4B 334015 BG/HA1VA901	TQOSN/GWSI
679.45	901.7	635	542.45	12100	36000	2400	BT4B 334016 AG/HA1VA901	TQOES/GWISI
679.45	901.7	635	552.45	12100	36000	2400	BT4B 334016 G/HA1VA901	TQOES/GWISI
680	930	700	700	18300	54000	3400	BT4B 328349/HA1	TQOT
682.625	965.2	701.675	701.675	17200	49000	3100	BT4B 334060 G/HA1VA901	TQOS/GWISI
682.625	965.2	701.675	701.675	17600	50000	3200	BT4B 331503 G/HA4	TQO.1/GWI
685.8	876	352.425	355.6	7810	22000	1500	BT4B 331089 CG/HA1	TQON/GW
685.8	876.3	352.425	355.6	7650	20000	1400	BT4B 328955 ABG/HA1VA902	TQOSN/GWISI
685.8	876.3	352.425	355.6	7650	20000	1400	BT4B 328955 BG/HA1VA901	TQOSN/GWISI
685.8	876.3	434.975	355.6	7210	22000	1500	BT4B 328704 G/HA1	TQOE/GWI
708.025	930.275	565.15	565.15	13000	39000	2500	BT4B 332098 A/HA4	TQO.1/GWI
708.025	930.275	565.15	565.15	15600	37500	2400	BT4-8109 E1/C800	TQOSN/GWSI
710	900	410	410	8800	26500	1760	331351	TQO.1/GWI
710	900	410	410	9680	27000	1800	BT4B 331351 BG/HA1	TQON/GW
710	900	410	410	11000	27000	1800	BT4B 331351 E/C775	TQON/GW

Spherical Roller Bearings

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
95	200	67	699	765	73.5	2600	3400	22319 EKJA/VA405
100	150	50	296	415	45.5	2800	4000	24020 CC/W33
100	150	50	296	415	45.5	2800	4000	24020 CCK30/W33
100	150	50	296	415	45.5		1700	24020-2RS5/VT143
100	165	52	385	490	53	3000	4000	23120 CC/W33
100	165	52	385	490	53	3000	4000	23120 CCK/W33
100	165	52	386	490	53		1700	23120-2RS5/VT143
100	165	65	468	640	68	2400	3200	24120 CC/W33
100	165	65	468	640	68	2400	3200	24120 CCK30/W33
100	165	65	470	640	68		1700	24120-2RS5/VT143
100	180	46	433	490	49	3400	4500	22220 E
100	180	46	433	490	49	3400	4500	22220 EK
100	180	55	433	490	49		1600	BS2-2220-2RS5/VT143
100	180	55	433	490	49		1600	BS2-2220-2RS5K/VT143
100	180	60.3	498	600	63	2400	3400	23220 CC/W33
100	180	60.3	498	600	63	2400	3400	23220 CCK/W33
100	180	60.3	499	600	63		1600	23220-2RS/VT143
100	180	60.3	499	600	63		1600	23220-2RS5/VT143
100	215	47	433	490	49	3400	4500	21320 E
100	215	47	433	490	49	3400	4500	21320 EK
100	215	73	847	950	88	2400	3000	22320 E
100	215	73	847	950	88	2400	3000	22320 EJA/VA405
100	215	73	847	950	88	2400	3000	22320 EJA/VA406
100	215	73	847	950	88	2400	3000	22320 EK
100	215	73	847	950	88	2400	3000	22320 EKJA/VA405
100	215	82	847	950	88		600	BS2-2320-2CS5/VT143
100	215	82	847	950	88		600	BS2-2320-2CS5K/VT143
110	170	45	326	440	46.5	3400	4300	23022 CC/W33
110	170	45	326	440	46.5	3400	4300	23022 CCK/W33
110	170	45	326	440	46.5		1500	23022-2RS/VT143

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
110	170	60	437	620	67	2400	3600	24022 CC/W33
110	170	60	437	620	67	2400	3600	24022 CCK30/W33
110	170	60	438	620	67		1600	24022-2RS5/VT143
110	180	56	450	585	61	2800	3600	23122 CC/W33
110	180	56	450	585	61	2800	3600	23122 CCK/W33
110	180	56	451	585	61		800	23122-2CS5/VT143
110	180	56	451	585	61		800	23122-2CS5K/VT143
110	180	69	539	750	78	2000	3000	24122 CC/W33
110	180	69	539	750	78	2000	3000	24122 CCK30/W33
110	180	69	540	750	78		630	24122-2CS5/VT143
110	200	53	572	640	63	3000	4000	22222 E
110	200	53	572	640	63	3000	4000	22222 EK
110	200	63	572	640	63		1500	BS2-2222-2RS5/VT143
110	200	63	572	640	63		1500	BS2-2222-2RS5K/VT143
110	200	69.8	626	765	76.5	2200	3200	23222 CC/W33
110	200	69.8	626	765	76.5	2200	3200	23222 CCK/W33
110	200	69.8	627	765	76.5		640	23222-2CS5/VT143
110	200	69.8	627	765	76.5		640	23222-2CS5K/VT143
110	240	80	989	1120	100	2000	2800	22322 E
110	240	80	989	1120	100	2000	2800	22322 EJA/VA405
110	240	80	989	1120	100	2000	2800	22322 EJA/VA406
110	240	80	989	1120	100	2000	2800	22322 EK
110	240	80	989	1120	100	2000	2800	22322 EKJA/VA405
120	180	46	366	500	52	3200	4000	23024 CC/W33
120	180	46	366	500	52	3200	4000	23024 CCK/W33
120	180	46	367	500	52		1400	23024-2RS5/VT143
120	180	60	456	670	68	2400	3400	24024 CC/W33
120	180	60	456	670	68	2400	3400	24024 CCK30/W33
120	180	60	457	670	68		670	24024-2CS5/VT143
120	200	62	534	695	71	2600	3400	23124 CC/W33

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
120	200	62	534	695	71	2600	3400	23124 CCK/W33
120	200	62	535	695	71		720	23124-2CS5/VT143
120	200	80	679	950	95	1900	2600	24124 CC/W33
120	200	80	679	950	95	1900	2600	24124 CCK30/W33
120	200	80	680	950	95		560	24124-2CS5/VT143
120	215	58	652	765	73.5	2800	3800	22224 E
120	215	58	652	765	73.5	2800	3800	22224 EK
120	215	69	652	765	73.5		1400	BS2-2224-2RS5/VT143
120	215	69	652	765	73.5		1400	BS2-2224-2RS5K/VT143
120	215	76	732	930	93	2000	2800	23224 CC/W33
120	215	76	732	930	93	2000	2800	23224 CCK/W33
120	215	76	734	930	93		600	23224-2CS5/VT143
120	215	76	734	930	93		600	23224-2CS5K/VT143
120	260	86	1019	1120	100	2000	2600	22324 CC/W33
120	260	86	1019	1120	100	2000	2600	22324 CCJA/W33VA405
120	260	86	1019	1120	100	2000	2600	22324 CCJA/W33VA406
120	260	86	1019	1120	100	2000	2600	22324 CCK/W33
120	260	86	1019	1120	100	2000	2600	22324 CCKJA/W33VA405
120	260	86	1019	1120	100	2000	3900	22324 CC/C4W33VA991
120	260	86	1022	1120	100		600	22324-2CS5/VT143
120	260	86	1022	1120	100		600	22324-2CS5K/VT143
130	200	52	452	610	61	2800	3600	23026 CC/W33
130	200	52	452	610	61	2800	3600	23026 CCK/W33
130	200	52	452	610	62		800	23026-2CS5/VT143
130	200	52	452	610	62		800	23026-2CS5K/VT143
130	200	69	569	815	81.5	2000	3000	24026 CC/W33
130	200	69	569	815	81.5	2000	3000	24026 CCK30/W33
130	200	69	570	830	81.5		600	24026-2CS5/VT143
130	210	64	586	780	78	2400	3200	23126 CC/W33
130	210	64	586	780	78	2400	3200	23126 CCK/W33

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
130	210	80	699	1000	100	1700	2400	24126 CC/W33
130	210	80	699	1000	100	1700	2400	24126 CCK30/W33
130	210	80	701	1000	100		530	24126-2CS5/VT143
130	220	73	640	930	93	1600	2400	229750 J/C3R505
130	230	64	758	930	88	2600	3600	22226 E
130	230	64	758	930	88	2600	3600	22226 EK
130	230	75	758	930	88		700	BS2-2226-2CS5/VT143
130	230	75	758	930	88		700	BS2-2226-2CS5K/VT143
130	230	80	826	1060	104	1900	2600	23226 CC/W33
130	230	80	826	1060	104	1900	2600	23226 CCK/W33
130	230	80	828	1060	104		530	23226-2CS5/VT143
130	230	80	828	1060	104		530	23226-2CS5K/VT143
130	280	93	1176	1320	114	1800	2400	22326 CC/W33
130	280	93	1176	1320	114	1800	2400	22326 CCJA/W33VA405
130	280	93	1176	1320	114	1800	2400	22326 CCJA/W33VA406
130	280	93	1176	1320	114	1800	2400	22326 CCK/W33
130	280	93	1176	1320	114	1800	2400	22326 CCKJA/W33VA405
130	280	93	1176	1320	114	1800	3600	22326 CC/C4W33VA991
130	280	93	1178	1320	114		500	22326-2CS5/VT143
130	280	93	1178	1320	114		500	22326-2CS5K/VT143
140	210	53	485	680	68	2600	3400	23028 CC/W33
140	210	53	485	680	68	2600	3400	23028 CCK/W33
140	210	53	485	680	68		700	23028-2CS5/VT143
140	210	53	485	680	68		700	23028-2CS5K/VT143
140	210	69	600	900	88	2000	2800	24028 CC/W33
140	210	69	600	900	88	2000	2800	24028 CCK30/W33
140	210	69	601	900	88		560	24028-2CS5/VT143
140	225	68	659	900	88	2200	2800	23128 CC/W33
140	225	68	659	900	88	2200	2800	23128 CCK/W33
140	225	85	796	1160	112	1600	2200	24128 CC/W33

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
140	225	85	796	1160	112	1600	2200	24128 CCK30/W33
140	225	85	797	1160	112		450	24128-2CS5/VT143
140	225	85	797	1160	112		450	24128-2CS5K30/VT143
140	250	68	743	900	86.5	2400	3200	22228 CC/W33
140	250	68	743	900	86.5	2400	3200	22228 CCK/W33
140	250	68	744	900	86.5		670	22228-2CS5/VT143
140	250	68	744	900	86.5		670	22228-2CS5K/VT143
140	250	88	962	1250	120	1700	2400	23228 CC/W33
140	250	88	962	1250	120	1700	2400	23228 CCK/W33
140	250	88	963	1250	120		480	23228-2CS5/VT143
140	250	88	963	1250	120		480	23228-2CS5K/VT143
140	300	102	1357	1560	132	1700	2200	22328 CC/W33
140	300	102	1357	1560	132	1700	2200	22328 CCJA/W33VA405
140	300	102	1357	1560	132	1700	2200	22328 CCJA/W33VA406
140	300	102	1357	1560	132	1700	2200	22328 CCK/W33
140	300	102	1357	1560	132	1700	2200	22328 CCKJA/W33VA405
140	300	102	1357	1560	132	1700	3400	22328 CC/C4W33VA991
140	300	102	1359	1560	132		430	22328-2CS5/VT143
140	300	102	1359	1560	132		430	22328-2CS5K/VT143
150	225	56	531	750	73.5	2400	3200	23030 CC/W33
150	225	56	531	750	73.5	2400	3200	23030 CCK/W33
150	225	56	532	750	73.5		670	23030-2CS5/VT143
150	225	56	532	750	73.5		670	23030-2CS5K/VT143
150	225	75	680	1040	100	1800	2600	24030 CC/W33
150	225	75	680	1040	100	1800	2600	24030 CCK30/W33
150	225	75	681	1040	100		530	24030-2CS5/VT143
150	250	80	883	1200	114	2000	2600	23130 CC/W33
150	250	80	883	1200	114	2000	2600	23130 CCK/W33
150	250	80	884	1200	114		560	23130-2CS5/VT143
150	250	80	884	1200	114		560	23130-2CS5K/VT143

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
150	250	100	1054	1530	146	1400	2000	24130 CC/W33
150	250	100	1054	1530	146	1400	2000	24130 CCK30/W33
150	250	100	1056	1530	146		400	24130-2CS5/VT143
150	250	100	1056	1530	146		400	24130-2CS5K30/VT143
150	270	73	898	1080	102	2200	3000	22230 CC/W33
150	270	73	898	1080	102	2200	3000	22230 CCK/W33
150	270	73	899	1080	102		630	22230-2CS5/VT143
150	270	73	899	1080	102		630	22230-2CS5K/VT143
150	270	96	1129	1460	137	1600	2200	23230 CC/W33
150	270	96	1129	1460	137	1600	2200	23230 CCK/W33
150	270	96	1132	1460	137		430	23230-2CS5/VT143
150	270	96	1132	1460	137		430	23230-2CS5K/VT143
150	320	108	1539	1760	146	1600	2000	22330 CC/W33
150	320	108	1539	1760	146	1600	2000	22330 CCJA/W33VA405
150	320	108	1539	1760	146	1600	2000	22330 CCJA/W33VA406
150	320	108	1539	1760	146	1600	2000	22330 CCK/W33
150	320	108	1539	1760	146	1600	2000	22330 CCKJA/W33VA405
150	320	108	1539	1760	146	1600	3100	22330 CC/C4W33VA991
150	320	108	1541	1760	146		400	22330-2CS5/VT143
150	320	108	1541	1760	146		400	22330-2CS5K/VT143
160	240	60	614	880	83	2400	3000	23032 CC/W33
160	240	60	614	880	83	2400	3000	23032 CCK/W33
160	240	60	615	880	83		670	23032-2CS5/VT143
160	240	60	615	880	83		670	23032-2CS5K/VT143
160	240	80	783	1200	114	1700	2400	24032 CC/W33
160	240	80	783	1200	114	1700	2400	24032 CCK30/W33
160	240	80	784	1200	114		450	24032-2CS5/VT143
160	270	86	1029	1370	129	1900	2400	23132 CC/W33
160	270	86	1029	1370	129	1900	2400	23132 CCK/W33
160	270	86	1030	1400	129		530	23132-2CS5/VT143

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
170	280	109	1270	1860	170	1200	1800	24134 CCK30/W33
170	280	109	1273	1860	170		360	24134-2CS5/VT143
170	310	86	1183	1460	132	1900	2600	22234 CC/W33
170	310	86	1183	1460	132	1900	2600	22234 CCK/W33
170	310	86	1185	1460	134		500	22234-2CS5/VT143
170	310	86	1185	1460	134		500	22234-2CS5K/VT143
170	310	110	1472	1930	173	1400	2000	23234 CC/W33
170	310	110	1472	1930	173	1400	2000	23234 CCK/W33
170	360	120	1863	2160	176	1400	1800	22334 CC/W33
170	360	120	1863	2160	176	1400	1800	22334 CCJA/W33VA405
170	360	120	1863	2160	176	1400	1800	22334 CCJA/W33VA406
170	360	120	1863	2160	176	1400	1800	22334 CCK/W33
170	360	120	1863	2160	176	1400	1800	22334 CCKJA/W33VA405
170	360	120	1863	2160	176	1400	2700	22334 CC/C4W33VA991
180	250	52	519	830	76.5	2600	2800	23936 CC/W33
180	250	52	519	830	76.5	2600	2800	23936 CCK/W33
180	280	74	883	1250	114	2000	2600	23036 CC/W33
180	280	74	883	1250	114	2000	2600	23036 CCK/W33
180	280	74	884	1270	114		560	23036-2CS5/VT143
180	280	74	884	1270	114		560	23036-2CS5K/VT143
180	280	100	1134	1730	156	1500	2200	24036 CC/W33
180	280	100	1134	1730	156	1500	2200	24036 CCK30/W33
180	280	100	1136	1730	156		380	24036-2CS5/VT143
180	300	96	1263	1760	160	1700	2200	23136 CC/W33
180	300	96	1263	1760	160	1700	2200	23136 CCK/W33
180	300	96	1264	1800	160		430	23136-2CS5/VT143
180	300	96	1264	1800	160		430	23136-2CS5K/VT143
180	300	118	1449	2160	196	1100	1600	24136 CC/W33
180	300	118	1449	2160	196	1100	1600	24136 CCK30/W33

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
180	300	118	1452	2160	196		360	24136-2CS5/VT143
180	320	86	1237	1560	140	1800	2600	22236 CC/W33
180	320	86	1237	1560	140	1800	2600	22236 CCK/W33
180	320	86	1239	1560	140		530	22236-2CS5/VT143
180	320	86	1239	1560	140		530	22236-2CS5K/VT143
180	320	112	1557	2120	186	1300	1900	23236 CC/W33
180	320	112	1557	2120	186	1300	1900	23236 CCK/W33
180	320	112	1560	2120	190		360	23236-2CS5/VT143
180	380	126	2077	2450	193	1300	1700	22336 CC/W33
180	380	126	2077	2450	193	1300	1700	22336 CCJA/W33VA405
180	380	126	2077	2450	193	1300	1700	22336 CCJA/W33VA406
180	380	126	2077	2450	193	1300	1700	22336 CCK/W33
180	380	126	2077	2450	193	1300	1700	22336 CCKJA/W33VA405
180	380	126	2077	2450	193	1300	2700	22336 CC/C4W33VA991
190	260	52	499	800	76.5	2400	2600	23938 CC/W33
190	260	52	499	800	76.5	2400	2600	23938 CCK/W33
190	290	75	916	1340	122	1900	2400	23038 CC/W33
190	290	75	916	1340	122	1900	2400	23038 CCK/W33
190	290	100	1164	1800	163	1400	2000	24038 CC/W33
190	290	100	1164	1800	163	1400	2000	24038 CCK30/W33
190	320	104	1456	2080	183	1500	2000	23138 CC/W33
190	320	104	1456	2080	183	1500	2000	23138 CCK/W33
190	320	104	1458	2080	183		400	23138-2CS5/VT143
190	320	104	1458	2080	183		400	23138-2CS5K/VT143
190	320	128	1652	2500	212	1100	1500	24138 CC/W33
190	320	128	1652	2500	212	1100	1500	24138 CCK30/W33
190	320	128	1652	2500	212	1100	2300	24138 CC/C4W33VA991
190	320	128	1655	2500	212		340	24138-2CS5/VT143
190	340	92	1342	1700	150	1700	2400	22238 CC/W33
190	340	92	1342	1700	150	1700	2400	22238 CCK/W33

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
190	340	92	1345	1700	150		480	22238-2CS5/VT143
190	340	92	1345	1700	150		480	22238-2CS5K/VT143
190	340	120	1759	2400	208	1300	1800	23238 CC/W33
190	340	120	1759	2400	208	1300	1800	23238 CCK/W33
190	340	120	1762	2400	212		340	23238-2CS5/VT143
190	400	132	2232	2650	208	1200	1600	22338 CC/W33
190	400	132	2232	2650	208	1200	1600	22338 CCJA/W33VA405
190	400	132	2232	2650	208	1200	1600	22338 CCJA/W33VA406
190	400	132	2232	2650	208	1200	1600	22338 CCK/W33
190	400	132	2232	2650	208	1200	1600	22338 CCKJA/W33VA405
190	400	132	2232	2650	208	1200	2500	22338 CC/C4W33VA991
190	400	132	2236	2650	208		340	22338-2CS5/VT143
200	280	60	651	1040	93	2200	2400	23940 CC/W33
200	280	60	651	1040	93	2200	2400	23940 CCK/W33
200	310	82	1058	1530	137	1800	2200	23040 CC/W33
200	310	82	1058	1530	137	1800	2200	23040 CCK/W33
200	310	82	1059	1530	137		480	23040-2CS5/VT143
200	310	82	1059	1530	137		480	23040-2CS5K/VT143
200	310	109	1353	2120	186	1300	1900	24040 CC/W33
200	310	109	1353	2120	186	1300	1900	24040 CCK30/W33
200	340	112	1665	2360	204	1500	1900	23140 CC/W33
200	340	112	1665	2360	204	1500	1900	23140 CCK/W33
200	340	112	1668	2360	204		380	23140-2CS5/VT143
200	340	112	1668	2360	204		380	23140-2CS5K/VT143
200	340	140	1865	2800	232	1000	1400	24140 CC/W33
200	340	140	1865	2800	232	1000	1400	24140 CCK30/W33
200	340	140	1865	2800	232	1000	2100	24140 CC/C4W33VA991
200	340	140	1871	2800	232		320	24140-2CS5/VT143
200	360	98	1526	1930	166	1600	2200	22240 CC/W33
200	360	98	1526	1930	166	1600	2200	22240 CCK/W33

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
200	360	98	1529	1930	166		430	22240-2CS5/VT143
200	360	98	1529	1930	166		430	22240-2CS5K/VT143
200	360	128	1947	2700	228	1200	1700	23240 CC/W33
200	360	128	1947	2700	228	1200	1700	23240 CCK/W33
200	360	128	1947	2700	228	1200	2500	23240 CC/C4W33VA991
200	360	128	1950	2700	232		340	23240-2CS5/VT143
200	360	128	1950	2700	232		340	23240-2CS5K/VT143
200	420	138	2439	2900	224	1200	1500	22340 CC/W33
200	420	138	2439	2900	224	1200	1500	22340 CCJA/W33VA405
200	420	138	2439	2900	224	1200	1500	22340 CCJA/W33VA406
200	420	138	2439	2900	224	1200	1500	22340 CCK/W33
200	420	138	2439	2900	224	1200	1500	22340 CCKJA/W33VA405
200	420	138	2439	2900	224	1200	2400	22340 CC/C4W33VA991
220	300	60	661	1080	93	2000	2200	23944 CC/W33
220	300	60	661	1080	93	2000	2200	23944 CCK/W33
220	300	60	662	1080	93		600	23944-2CS/VT143
220	340	90	1261	1860	163	1600	2000	23044 CC/W33
220	340	90	1261	1860	163	1600	2000	23044 CCK/W33
220	340	90	1262	1860	163		430	23044-2CS5/VT143
220	340	90	1262	1860	163		430	23044-2CS5K/VT143
220	340	118	1628	2600	212	1200	1700	24044 CC/W33
220	340	118	1628	2600	212	1200	1700	24044 CCK30/W33
220	340	118	1628	2600	212	1200	2600	24044 CC/C4W33VA991
220	370	120	1888	2750	232	1300	1700	23144 CC/W33
220	370	120	1888	2750	232	1300	1700	23144 CCK/W33
220	370	120	1891	2750	232		360	23144-2CS5/VT143
220	370	120	1891	2750	232		360	23144-2CS5K/VT143
220	370	150	2197	3350	285	850	1200	24144 CC/W33
220	370	150	2197	3350	285	850	1200	24144 CCK30/W33
220	370	150	2197	3350	285	850	1900	24144 CC/C4W33VA991

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
220	400	108	1835	2360	196	1500	2000	22244 CC/W33
220	400	108	1835	2360	196	1500	2000	22244 CCK/W33
220	400	108	1839	2360	200		380	22244-2CS5/VT143
220	400	108	1839	2360	200		380	22244-2CS5K/VT143
220	400	144	2485	3450	285	1100	1500	23244 CC/W33
220	400	144	2485	3450	285	1100	1500	23244 CCK/W33
220	400	144	2485	3450	285	1100	2200	23244 CC/C4W33VA991
220	460	145	2839	3450	260	1000	1400	22344 CC/W33
220	460	145	2839	3450	260	1000	1400	22344 CCJA/W33VA405
220	460	145	2839	3450	260	1000	1400	22344 CCK/W33
220	460	145	2839	3450	260	1000	1400	22344 CCKJA/W33VA405
220	460	145	2839	3450	260	1000	2100	22344 CC/C4W33VA991
220	460	145	2844	3450	260		300	22344-2CS5/VT143
220	460	145	2844	3450	260		300	22344-2CS5K/VT143
240	320	60	685	1160	98	1900	2000	23948 CC/W33
240	320	60	685	1160	98	1900	2000	23948 CCK/W33
240	360	92	1340	2080	176	1500	1900	23048 CC/W33
240	360	92	1340	2080	176	1500	1900	23048 CCK/W33
240	360	92	1341	2080	176		400	23048-2CS5/VT143
240	360	92	1341	2080	176		400	23048-2CS5K/VT143
240	360	118	1663	2700	228	1100	1600	24048 CC/W33
240	360	118	1663	2700	228	1100	1600	24048 CCK30/W33
240	360	118	1663	2700	228	1100	2500	24048 CC/C4W33VA991
240	400	128	2187	3200	255	1200	1600	23148 CC/W33
240	400	128	2187	3200	255	1200	1600	23148 CCK/W33
240	400	128	2191	3200	255		340	23148-2CS5/VT143
240	400	128	2191	3200	255		340	23148-2CS5K/VT143
240	400	160	2489	3900	320	750	1100	24148 CC/W33
240	400	160	2489	3900	320	750	1100	24148 CCK30/W33
240	400	160	2489	3900	320	750	1700	24148 CC/C4W33VA991

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
240	440	120	2258	3000	245	1300	1800	22248 CC/W33
240	440	120	2258	3000	245	1300	1800	22248 CCK/W33
240	440	160	2799	3800	310	950	1300	23248 CAC/W33
240	440	160	3042	4300	345	950	1300	23248 CC/W33
240	440	160	3042	4300	345	950	1300	23248 CCK/W33
240	440	160	3042	4300	345	950	2000	23248 CC/C4W33VA991
240	500	155	3229	4000	290	950	1300	22348 CC/W33
240	500	155	3229	4000	290	950	1300	22348 CCJA/W33VA405
240	500	155	3229	4000	290	950	1300	22348 CCK/W33
240	500	155	3229	4000	290	950	1300	22348 CCKJA/W33VA405
240	500	155	3229	4000	290	950	1900	22348 CC/C4W33VA991
260	360	75	1055	1800	156	1700	1900	23952 CC/W33
260	360	75	1055	1800	156	1700	1900	23952 CCK/W33
260	400	104	1675	2550	212	1300	1700	23052 CC/W33
260	400	104	1675	2550	212	1300	1700	23052 CCK/W33
260	400	104	1677	2550	212		360	23052-2CS5/VT143
260	400	104	1677	2550	212		360	23052-2CS5K/VT143
260	400	140	2135	3450	285	1000	1400	24052 CC/W33
260	400	140	2135	3450	285	1000	1400	24052 CCK30/W33
260	400	140	2135	3450	285	1000	2200	24052 CC/C4W33VA991
260	440	144	2568	3750	280	1100	1400	23152 CAC/W33
260	440	144	2568	3750	280	1100	1400	23152 CACK/W33
260	440	144	2664	3900	290	1100	1400	23152 CC/W33
260	440	144	2664	3900	290	1100	1400	23152 CCK/W33
260	440	144	2668	3900	290		320	23152-2CS5/VT143
260	440	144	2668	3900	290		320	23152-2CS5K/VT143
260	440	180	3086	4800	380	670	950	24152 CC/W33
260	440	180	3086	4800	380	670	950	24152 CCK30/W33
260	440	180	3086	4800	380	670	1500	24152 CC/C4W33VA991
260	440	180	3092	4900	380		240	24152-2CS5/VT143

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
260	480	130	2722	3550	285	1200	1600	22252 CAC/W33
260	480	130	2722	3550	285	1200	1600	22252 CACK/W33
260	480	130	2722	3550	285	1200	1600	22252 CC/W33
260	480	130	2722	3550	285	1200	1600	22252 CCK/W33
260	480	174	3395	4750	360	850	1200	23252 CAC/W33
260	480	174	3395	4750	360	850	1200	23252 CACK/W33
260	480	174	3395	4750	360	850	1200	23252 CC/W33
260	480	174	3395	4750	360	850	1200	23252 CCK/W33
260	480	174	3395	4750	360	850	1800	23252 CC/C4W33VA991
260	540	165	3680	4550	325	850	1100	22352 CC/W33
260	540	165	3680	4550	325	850	1100	22352 CCK/W33
260	540	165	3680	4550	325	850	1800	22352 CC/C4W33VA991
280	380	75	1016	1760	143	1600	1700	23956 CC/W33
280	380	75	1016	1760	143	1600	1700	23956 CCK/W33
280	420	106	1747	2750	216	1300	1600	23056 CAC/W33
280	420	106	1747	2750	216	1300	1600	23056 CACK/W33
280	420	106	1797	2850	224	1300	1600	23056 CC/W33
280	420	106	1797	2850	224	1300	1600	23056 CCK/W33
280	420	140	2248	3800	285	950	1400	24056 CC/W33
280	420	140	2248	3800	285	950	1400	24056 CCK30/W33
280	420	140	2248	3800	285	950	2100	24056 CC/C4W33VA991
280	460	146	2688	4000	320	1000	1300	23156 CAC/W33
280	460	146	2688	4000	320	1000	1300	23156 CACK/W33
280	460	146	2784	4250	335	1000	1300	23156 CC/W33
280	460	146	2784	4250	335	1000	1300	23156 CCK/W33
280	460	146	2788	4250	335		300	23156-2CS5/VT143
280	460	146	2788	4250	335		300	23156-2CS5K/VT143
280	460	180	3183	5100	415	630	900	24156 CC/W33
280	460	180	3183	5100	415	630	900	24156 CCK30/W33
280	460	180	3183	5100	415	630	1300	24156 CC/C4W33VA991

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
280	460	180	3190	5100	415		220	24156-2CS5/VT143
280	460	180	3190	5100	415		220	24156-2CS5K30/VT143
280	500	130	2795	3750	300	1100	1500	22256 CC/W33
280	500	130	2795	3750	300	1100	1500	22256 CCK/W33
280	500	176	3425	4900	365	800	1100	23256 CAC/W33
280	500	176	3425	4900	365	800	1100	23256 CACK/W33
280	500	176	3425	4900	365	800	1100	23256 CC/W33
280	500	176	3425	4900	365	800	1100	23256 CCK/W33
280	500	176	3425	4900	365	800	1700	23256 CC/C4W33VA991
280	580	175	4158	5200	365	800	1100	22356 CC/W33
280	580	175	4158	5200	365	800	1100	22356 CCK/W33
280	580	175	4158	5200	365	800	1600	22356 CC/C4W33VA991
300	420	90	1413	2500	200	1400	1600	23960 CC/W33
300	420	90	1413	2500	200	1400	1600	23960 CCK/W33
300	460	118	2154	3350	255	1200	1500	23060 CAC/W33
300	460	118	2154	3350	255	1200	1500	23060 CACK/W33
300	460	118	2219	3450	265	1200	1500	23060 CC/W33
300	460	118	2219	3450	265	1200	1500	23060 CCK/W33
300	460	118	2222	3450	265		320	23060-2CS5/VT143
300	460	118	2222	3450	265		320	23060-2CS5K/VT143
300	460	160	2735	4500	340	850	1200	24060 CAC/W33
300	460	160	2735	4500	340	850	1200	24060 CACK30/W33
300	460	160	2821	4750	355	850	1200	24060 CC/W33
300	460	160	2821	4750	355	850	1200	24060 CCK30/W33
300	460	160	2821	4750	355	850	1900	24060 CC/C4W33VA991
300	460	160	2827	4750	355		240	24060-2CS5/VT143
300	500	160	3135	4650	345	950	1200	23160 CAC/W33
300	500	160	3135	4650	345	950	1200	23160 CACK/W33
300	500	160	3368	5100	380	950	1200	23160 CC/W33
300	500	160	3368	5100	380	950	1200	23160 CCK/W33

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
300	500	160	3373	5100	380		260	23160-2CS5/VT143
300	500	160	3373	5100	380		260	23160-2CS5K/VT143
300	500	200	3876	6300	465	560	800	24160 CC/W33
300	500	200	3876	6300	465	560	800	24160 CCK30/W33
300	500	200	3876	6300	465	560	1200	24160 CC/C4W33VA991
300	500	200	3881	6300	465		212	24160-2CS5/VT143
300	500	200	3881	6300	465		212	24160-2CS5K30/VT143
300	540	140	3239	4250	325	1000	1400	22260 CC/W33
300	540	140	3239	4250	325	1000	1400	22260 CCK/W33
300	540	192	4052	5850	425	750	1000	23260 CAC/W33
300	540	192	4052	5850	425	750	1000	23260 CACK/W33
300	540	192	4052	5850	425	750	1000	23260 CC/W33
300	540	192	4052	5850	425	750	1000	23260 CCK/W33
300	540	192	4052	5850	425	750	1600	23260 CC/C4W33VA991
320	440	90	1480	2700	212	1400	1500	23964 CC/W33
320	440	90	1480	2700	212	1400	1500	23964 CCK/W33
320	480	121	2348	3800	285	1100	1400	23064 CC/W33
320	480	121	2348	3800	285	1100	1400	23064 CCK/W33
320	480	121	2348	3800	285		320	23064-2CS5/VT143
320	480	121	2348	3800	285		320	23064-2CS5K/VT143
320	480	160	2969	5100	400	800	1200	24064 CC/W33
320	480	160	2969	5100	400	800	1200	24064 CCK30/W33
320	480	160	2969	5100	400	800	1800	24064 CC/C4W33VA991
320	540	176	3653	5500	400	850	1100	23164 CAC/W33
320	540	176	3653	5500	400	850	1100	23164 CACK/W33
320	540	176	3923	6000	440	850	1100	23164 CC/W33
320	540	176	3923	6000	440	850	1100	23164 CCK/W33
320	540	176	3929	6100	440		260	23164-2CS5/VT143
320	540	176	3929	6100	440		260	23164-2CS5K/VT143
320	540	218	4395	7100	510	500	700	24164 CC/W33

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
320	540	218	4395	7100	510	500	700	24164 CCK30/W33
320	540	218	4395	7100	510	500	1100	24164 CC/C4W33VA991
320	580	150	3708	4900	375	950	1300	22264 CC/W33
320	580	150	3708	4900	375	950	1300	22264 CCK/W33
320	580	208	4607	6700	475	700	950	23264 CAC/W33
320	580	208	4607	6700	475	700	950	23264 CACK/W33
320	580	208	4607	6700	475	700	950	23264 CC/W33
320	580	208	4607	6700	475	700	950	23264 CCK/W33
320	580	208	4607	6700	475	700	1400	23264 CC/C4W33VA991
340	460	90	1490	2800	216	1300	1400	23968 CC/W33
340	460	90	1490	2800	216	1300	1400	23968 CCK/W33
340	520	133	2812	4550	335	1000	1300	23068 CAC/W33
340	520	133	2812	4550	335	1000	1300	23068 CACK/W33
340	520	133	2812	4550	335	1000	1300	23068 CC/W33
340	520	133	2812	4550	335	1000	1300	23068 CCK/W33
340	520	180	3621	6200	475	750	1100	24068 CC/W33
340	520	180	3621	6200	475	750	1100	24068 CCK30/W33
340	520	180	3621	6200	475	750	1600	24068 CC/C4W33VA991
340	580	190	4285	6550	465	800	1000	23168 CAC/W33
340	580	190	4285	6550	465	800	1000	23168 CACK/W33
340	580	190	4445	6800	480	800	1000	23168 CC/W33
340	580	190	4445	6800	480	800	1000	23168 CCK/W33
340	580	190	4452	6800	490		240	23168-2CS5/VT143
340	580	190	4453	6800	490		240	23168-2CS5K/VT143
340	580	243	5487	8650	630	430	630	24168 ECAC/W33
340	580	243	5487	8650	630	430	630	24168 ECACK30/W33
340	580	243	5487	8650	630	430	630	24168 ECCJ/W33
340	580	243	5487	8650	630	430	630	24168 ECCK30J/W33
340	620	224	5362	7800	550	560	800	23268 CA/W33
340	620	224	5362	7800	550	560	800	23268 CAK/W33

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
360	480	90	1456	2750	220	1200	1300	23972 CC/W33
360	480	90	1456	2750	220	1200	1300	23972 CCK/W33
360	540	134	2773	4650	335	950	1200	23072 CAC/W33
360	540	134	2773	4650	335	950	1200	23072 CACK/W33
360	540	134	2850	4800	345	950	1200	23072 CC/W33
360	540	134	2850	4800	345	950	1200	23072 CCK/W33
360	540	180	3705	6550	490	700	1000	24072 CC/W33
360	540	180	3705	6550	490	700	1000	24072 CCK30/W33
360	540	180	3705	6550	490	700	1600	24072 CC/C4W33VA991
360	600	192	4515	6950	490	750	1000	23172 CC/W33
360	600	192	4515	6950	490	750	1000	23172 CCK/W33
360	600	192	4521	6950	490		220	23172-2CS5/VT143
360	600	192	4521	6950	490		220	23172-2CS5K/VT143
360	600	243	5737	9300	670	400	600	24172 ECCJ/W33
360	600	243	5737	9300	670	400	600	24172 ECCK30J/W33
360	650	170	4430	6200	440	630	850	22272 CA/W33
360	650	170	4430	6200	440	630	850	22272 CAK/W33
360	650	232	5663	8300	570	530	750	23272 CA/W33
360	650	232	5663	8300	570	530	750	23272 CAK/W33
360	650	232	5669	8300	570		160	23272-2CS5/VT143
360	650	232	5669	8300	570		160	23272-2CS5K/VT143
380	520	106	2011	3800	285	1100	1200	23976 CC/W33
380	520	106	2011	3800	285	1100	1200	23976 CCK/W33
380	560	135	2903	4900	345	900	1200	23076 CAC/W33
380	560	135	2903	4900	345	900	1200	23076 CACK/W33
380	560	135	2984	5000	360	900	1200	23076 CC/W33
380	560	135	2984	5000	360	900	1200	23076 CCK/W33
380	560	135	2987	5000	360		260	23076-2CS5/VT143
380	560	180	3786	6800	475	670	950	24076 CC/W33
380	560	180	3786	6800	475	670	950	24076 CCK30/W33

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
380	620	194	4561	7100	500	560	1000	23176 CA/W33
380	620	194	4561	7100	500	560	1000	23176 CAK/W33
380	620	194	4561	7100	500		160	23176-2CS5/VT143
380	620	194	4561	7100	500		160	23176-2CS5K/VT143
380	620	243	5936	9800	710	360	530	24176 ECA/W33
380	620	243	5936	9800	710	360	530	24176 ECAK30/W33
380	680	240	6126	9150	620	500	750	23276 CA/W33
380	680	240	6126	9150	620	500	750	23276 CAK/W33
400	540	106	2038	3900	290	1100	1200	23980 CC/W33
400	540	106	2038	3900	290	1100	1200	23980 CCK/W33
400	600	148	3413	5700	400	850	1100	23080 CAC/W33
400	600	148	3413	5700	400	850	1100	23080 CACK/W33
400	600	148	3511	5850	415	850	1100	23080 CC/W33
400	600	148	3511	5850	415	850	1100	23080 CCK/W33
400	600	148	3515	5850	415		240	23080-2CS5/VT143
400	600	148	3515	5850	415		240	23080-2CS5K/VT143
400	600	200	4507	8000	560	630	900	24080 ECCJ/W33
400	600	200	4507	8000	560	630	900	24080 ECCK30J/W33
400	650	200	4864	7650	530	530	950	23180 CA/W33
400	650	200	4864	7650	530	530	950	23180 CAK/W33
400	650	200	4864	7650	530		150	23180-2CS5/VT143
400	650	200	4864	7650	530		150	23180-2CS5K/VT143
400	650	250	6331	10600	735	340	500	24180 ECA/W33
400	650	250	6331	10600	735	340	500	24180 ECAK30/W33
400	720	256	6881	10400	680	480	670	23280 CA/W33
400	720	256	6881	10400	680	480	670	23280 CAK/W33
400	820	243	7832	10400	670	430	750	22380 CA/W33
400	820	243	7832	10400	670	430	750	22380 CAK/W33
420	560	106	2083	4150	300	1000	1100	23984 CC/W33
420	560	106	2083	4150	300	1000	1100	23984 CCK/W33

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
420	620	150	3541	6000	415	600	1100	23084 CA/W33
420	620	150	3541	6000	415	600	1100	23084 CAK/W33
420	620	200	4610	8300	585	530	900	24084 ECA/W33
420	620	200	4610	8300	585	530	900	24084 ECAK30/W33
420	700	224	5919	9300	620	480	900	23184 CJ/W33
420	700	224	5919	9300	620	480	900	23184 CKJ/W33
420	700	224	5919	9300	620		190	23184-2CS5/VT143
420	700	224	5919	9300	620		190	23184-2CS5K/VT143
420	700	280	7577	12500	850	320	480	24184 ECA/W33
420	700	280	7577	12500	850	320	480	24184 ECAK30/W33
420	760	272	7677	11600	765	450	630	23284 CA/W33
420	760	272	7677	11600	765	450	630	23284 CAK/W33
420	760	272	7683	11600	765		128	23284-2CS5/VT143
420	760	272	7683	11600	765		128	23284-2CS5K/VT143
440	600	118	2506	4900	345	950	1000	23988 CC/W33
440	600	118	2506	4900	345	950	1000	23988 CCK/W33
440	650	157	3831	6550	450	560	1000	23088 CA/W33
440	650	157	3831	6550	450	560	1000	23088 CAK/W33
440	650	157	3834	6550	450		190	23088-2CS5/VT143
440	650	212	4987	9150	630	500	850	24088 ECA/W33
440	650	212	4987	9150	630	500	850	24088 ECAK30/W33
440	720	226	6215	10000	670	450	850	23188 CA/W33
440	720	226	6215	10000	670	450	850	23188 CAK/W33
440	720	226	6220	10000	670		180	23188-2CS5/VT143
440	720	226	6220	10000	670		180	23188-2CS5K/VT143
440	720	280	7777	13200	900	300	450	24188 ECA/W33
440	720	280	7777	13200	900	300	450	24188 ECAK30/W33
440	790	280	8150	12500	800	430	600	23288 CA/W33
440	790	280	8150	12500	800	430	600	23288 CAK/W33
460	580	118	2082	4900	345	630	1100	24892 CAK30MA/W20

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
460	580	118	2082	4900	345	630	1100	24892 CAMA/W20
460	620	118	2558	5000	355	600	1000	23992 CA/W33
460	620	118	2558	5000	355	600	1000	23992 CAK/W33
460	680	163	4065	6950	465	560	950	23092 CA/W33
460	680	163	4065	6950	465	560	950	23092 CAK/W33
460	680	218	5401	10000	670	480	800	24092 ECA/W33
460	680	218	5401	10000	670	480	800	24092 ECAK30/W33
460	760	240	6760	10800	680	430	800	23192 CA/W33
460	760	240	6760	10800	680	430	800	23192 CAK/W33
460	760	240	6765	10800	680		128	23192-2CS5/VT143
460	760	240	6765	10800	680		128	23192-2CS5K/VT143
460	760	300	8608	14600	1000	280	430	24192 ECA/W33
460	760	300	8608	14600	1000	280	430	24192 ECAK30/W33
460	830	296	8958	13700	880	400	560	23292 CA/W33
460	830	296	8958	13700	880	400	560	23292 CAK/W33
480	650	128	2990	5700	405	560	1000	23996 CA/W33
480	650	128	2990	5700	405	560	1000	23996 CAK/W33
480	700	165	3996	6800	450	530	950	23096 CA/W33
480	700	165	3996	6800	450	530	950	23096 CAK/W33
480	700	218	5524	10400	695	450	750	24096 ECA/W33
480	700	218	5524	10400	695	450	750	24096 ECAK30/W33
480	790	248	7362	12000	780	400	750	23196 CA/W33
480	790	248	7362	12000	780	400	750	23196 CAK/W33
480	790	248	7367	12000	780		170	23196-2CS5/VT143
480	790	248	7367	12000	780		170	23196-2CS5K/VT143
480	790	308	9198	15600	1040	260	400	24196 ECA/W33
480	790	308	9198	15600	1040	260	400	24196 ECAK30/W33
480	870	310	9805	15000	950	380	530	23296 CA/W33
480	870	310	9805	15000	950	380	530	23296 CAK/W33
500	670	128	2967	6000	415	530	950	239/500 CA/W33

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
500	670	128	2967	6000	415	530	950	239/500 CAK/W33
500	720	167	4358	7800	510	500	900	230/500 CA/W33
500	720	167	4358	7800	510	500	900	230/500 CAK/W33
500	720	218	5777	11000	735	430	700	240/500 ECA/W33
500	720	218	5777	11000	735	430	700	240/500 ECAK30/W33
500	830	264	8037	12900	830	380	700	231/500 CA/W33
500	830	264	8037	12900	830	380	700	231/500 CAK/W33
500	830	325	10123	17000	1120	260	380	241/500 ECA/W33
500	830	325	10123	17000	1120	260	380	241/500 ECAK30/W33
500	920	336	11183	17300	1060	360	500	232/500 CA/W33
500	920	336	11183	17300	1060	360	500	232/500 CAK/W33
530	650	118	2124	5300	380	530	950	248/530 CAK30MA/W20
530	710	136	3308	6700	465	500	900	239/530 CA/W33
530	710	136	3308	6700	465	500	900	239/530 CAK/W33
530	780	185	5267	9300	610	450	800	230/530 CA/W33
530	780	185	5267	9300	610	450	800	230/530 CAK/W33
530	780	250	6973	13200	830	400	670	240/530 ECA/W33
530	780	250	6973	13200	830	400	670	240/530 ECAK30/W33
530	780	250	7149	13200	915	20	50	240/530 BC
530	870	272	8526	14000	880	360	670	231/530 CA/W33
530	870	272	8526	14000	880	360	670	231/530 CAK/W33
530	870	335	10909	19000	1220	240	360	241/530 ECA/W33
530	870	335	10909	19000	1220	240	360	241/530 ECAK30/W33
530	980	355	13268	20400	1220	320	480	232/530 CA/W33
530	980	355	13268	20400	1220	320	480	232/530 CAK/W33
560	750	140	3571	7200	500	450	850	239/560 CA/W33
560	750	140	3571	7200	500	450	850	239/560 CAK/W33
560	820	195	5779	10200	670	430	750	230/560 CA/W33
560	820	195	5779	10200	670	430	750	230/560 CAK/W33
560	820	258	7530	14000	980	20	50	240/560 BC

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
560	820	258	7621	14600	980	380	630	240/560 ECA/W33
560	820	258	7621	14600	980	380	630	240/560 ECAK30/W33
560	920	280	9596	16000	980	340	630	231/560 CA/W33
560	920	280	9596	16000	980	340	630	231/560 CAK/W33
560	920	355	12366	21600	1340	220	320	241/560 ECJ/W33
560	920	355	12366	21600	1340	220	320	241/560 ECK30J/W33
560	1030	365	13940	22000	1320	280	430	232/560 CA/W33
560	1030	365	13940	22000	1320	280	430	232/560 CAK/W33
600	800	150	4022	8300	570	430	750	239/600 CA/W33
600	800	150	4022	8300	570	430	750	239/600 CAK/W33
600	870	200	6252	11400	735	400	700	230/600 CA/W33
600	870	200	6252	11400	735	400	700	230/600 CAK/W33
600	870	272	8502	16300	1100	20	45	240/600 BC
600	870	272	8580	17000	1080	340	560	240/600 ECA/W33
600	870	272	8580	17000	1080	340	560	240/600 ECAK30/W33
600	980	300	10738	18000	1100	320	560	231/600 CA/W33
600	980	300	10738	18000	1100	320	560	231/600 CAK/W33
600	980	375	13522	23600	1460	200	300	241/600 ECA/W33
600	980	375	13522	23600	1460	200	300	241/600 ECAK30/W33
600	1090	388	15652	25500	1460	260	400	232/600 CA/W33
630	780	112	2545	6100	415	430	750	238/630 CAMA/W20
630	850	165	4744	9800	630	400	700	239/630 CA/W33
630	850	165	4744	9800	630	400	700	239/630 CAK/W33
630	920	212	6898	12500	780	380	670	230/630 CA/W33
630	920	212	6898	12500	780	380	670	230/630 CAK/W33
630	920	290	9150	18000	1120	320	530	240/630 ECJ/W33
630	920	290	9150	18000	1120	320	530	240/630 ECK30J/W33
630	920	290	9307	17600	1180	20	45	240/630 BC
630	1030	315	12600	20800	1220	260	530	231/630 CA/W33
630	1030	315	12600	20800	1220	260	530	231/630 CAK/W33

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
630	1030	400	15001	27000	1630	190	280	241/630 ECA/W33
630	1030	400	15001	27000	1630	190	280	241/630 ECAK30/W33
670	820	112	2643	6400	430	400	700	238/670 CAMA/W20
670	820	150	3598	9500	655	400	700	248/670 CAMA/W20
670	900	170	5146	10800	680	360	670	239/670 CA/W33
670	900	170	5146	10800	680	360	670	239/670 CAK/W33
670	980	230	7919	14600	880	340	600	230/670 CA/W33
670	980	230	7919	14600	880	340	600	230/670 CAK/W33
670	980	308	10411	20000	1320	20	45	240/670 BC
670	980	308	10435	20400	1290	300	500	240/670 ECA/W33
670	980	308	10435	20400	1290	300	500	240/670 ECAK30/W33
670	1090	336	13101	22400	1320	240	500	231/670 CA/W33
670	1090	336	13101	22400	1320	240	500	231/670 CAK/W33
670	1090	412	16381	29000	1760	180	260	241/670 ECA/W33
670	1090	412	16381	29000	1760	180	260	241/670 ECAK30/W33
710	870	118	3013	7500	500	360	670	238/710 CAMA/W20
710	950	180	5702	12000	750	340	600	239/710 CA/W33
710	950	180	5702	12000	750	340	600	239/710 CAK/W33
710	950	243	6860	15600	930	300	500	249/710 CA/W33
710	950	243	6860	15600	930	300	500	249/710 CAK30/W33
710	1030	236	8669	16300	965	300	560	230/710 CA/W33
710	1030	236	8669	16300	965	300	560	230/710 CAK/W33
710	1030	315	11164	22800	1430	260	450	240/710 ECA/W33
710	1030	315	11164	22800	1430	260	450	240/710 ECAK30/W33
710	1030	315	11166	22000	1430	20	40	240/710 BC
710	1150	345	14732	26000	1530	240	450	231/710 CA/W33
710	1150	345	14732	26000	1530	240	450	231/710 CAK/W33
710	1150	438	17935	32500	1900	160	240	241/710 ECA/W33
710	1150	438	17935	32500	1900	160	240	241/710 ECAK30/W33
710	1280	450	21208	34500	2000	200	320	232/710 CA/W33

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
710	1280	450	21208	34500	2000	200	320	232/710 CAK/W33
750	920	128	3405	8500	550	340	600	238/750 CAMA/W20
750	1000	185	6138	13200	800	320	560	239/750 CA/W33
750	1000	185	6138	13200	800	320	560	239/750 CAK/W33
750	1000	250	7699	18000	1100	280	480	249/750 CA/W33
750	1000	250	7699	18000	1100	280	480	249/750 CAK30/W33
750	1090	250	10061	18600	1100	280	530	230/750 CA/W33
750	1090	250	10061	18600	1100	280	530	230/750 CAK/W33
750	1090	335	12235	25000	1460	240	430	240/750 ECA/W33
750	1090	335	12235	25000	1460	240	430	240/750 ECAK30/W33
750	1090	335	12309	24500	1530	20	40	240/750 BC
750	1220	365	16518	29000	1700	220	430	231/750 CA/W33
750	1220	365	16518	29000	1700	220	430	231/750 CAK/W33
750	1220	475	20434	37500	2160	150	220	241/750 ECA/W33
750	1220	475	20434	37500	2160	150	220	241/750 ECAK30/W33
800	980	180	4780	12900	830	320	560	248/800 CAK30MA/W20
800	1060	195	6595	14300	865	280	530	239/800 CA/W33
800	1060	195	6595	14300	865	280	530	239/800 CAK/W33
800	1060	258	8136	19300	1060	240	430	249/800 CA/W33
800	1150	258	10335	20000	1160	260	480	230/800 CA/W33
800	1150	258	10335	20000	1160	260	480	230/800 CAK/W33
800	1150	345	13431	28500	1660	220	400	240/800 ECA/W33
800	1150	345	13447	27500	1700	20	40	240/800 BC
800	1280	375	18033	31500	1800	200	400	231/800 CA/W33
800	1280	375	18033	31500	1800	200	400	231/800 CAK/W33
800	1280	475	21587	40500	2320	140	200	241/800 ECA/W33
800	1420	488	24973	43000	2360	180	280	232/800 CAF/W33
800	1420	488	24973	43000	2360	180	280	232/800 CAKF/W33
850	1030	136	3882	10000	630	260	530	238/850 CAKMA/W20
850	1030	136	3882	10000	630	260	530	238/850 CAMA/W20

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
850	1120	200	7072	15600	930	260	480	239/850 CA/W33
850	1120	200	7072	15600	930	260	480	239/850 CAK/W33
850	1120	272	9390	22800	1370	220	400	249/850 CA/W33
850	1120	272	9390	22800	1370	220	400	249/850 CAK30/W33
850	1220	272	11291	21600	1250	240	450	230/850 CA/W33
850	1220	272	11291	21600	1250	240	450	230/850 CAK/W33
850	1220	365	15078	31000	1900	20	40	240/850 BC
850	1220	365	15183	31500	1900	200	360	240/850 ECA/W33
850	1220	365	15183	31500	1900	200	360	240/850 ECAK30/W33
850	1360	500	23827	45000	2500	130	190	241/850 ECAF/W33
850	1360	500	23827	45000	2500	130	190	241/850 ECAK30F/W33
850	1500	515	27636	48000	2600	160	260	232/850 CAF/W33
900	1090	190	5428	15300	950	240	480	248/900 CAMA/W20
900	1180	206	7652	17000	1000	240	450	239/900 CA/W33
900	1180	206	7652	17000	1000	240	450	239/900 CAK/W33
900	1280	280	12002	23200	1320	220	400	230/900 CA/W33
900	1280	280	12002	23200	1320	220	400	230/900 CAK/W33
900	1280	375	16185	34500	2040	190	340	240/900 ECA/W33
900	1280	375	16185	34500	2040	190	340	240/900 ECAK30/W33
900	1280	375	16215	34000	2040	20	40	240/900 BC
900	1420	515	25310	49000	2700	120	180	241/900 ECAF/W33
900	1420	515	25310	49000	2700	120	180	241/900 ECAK30F/W33
950	1250	224	8606	19600	1120	220	430	239/950 CA/W33
950	1250	224	8606	19600	1120	220	430	239/950 CAK/W33
950	1250	300	10701	26000	1500	180	340	249/950 CA/W33
950	1250	300	10701	26000	1500	180	340	249/950 CAK30/W33
950	1360	300	14363	28500	1600	200	380	230/950 CA/W33
950	1360	300	14363	28500	1600	200	380	230/950 CAK/W33
950	1360	412	18228	38000	2240	20	35	240/950 BC
950	1500	545	27892	55000	3000	110	160	241/950 ECAF/W33

Angular Contact Ball Bearings

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
95	200	45	180	163	5.7	4000	5300	7319 BEGAM
95	250	55	242	236	7.65	3400	3400	7419 CBM
95	250	55	242	236	7.65	3400	3400	7419 GAM
95	250	55	242	236	7.65	3400	3400	7419 M
100	180	34	135	122	4.4	4500	4000	7220 BEGAY
100	180	34	135	122	4.4	4500	4000	7220 BEP
100	180	34	143	134	4.75	4300	5600	7220 BECBM
100	180	34	143	134	4.75	4300	5600	7220 BECCM
100	180	34	143	134	4.75	4300	5600	7220 BEGAM
100	180	34	143	134	4.75	4500	4500	7220 BECBP
100	180	34	143	134	4.75	4500	4500	7220 BECBY
100	215	47	203	190	6.4	3800	3600	7320 BEGAF
100	215	47	203	190	6.4	3800	3600	7320 BEGBY
100	215	47	203	190	6.4	3800	3600	7320 BEM
100	215	47	203	190	6.4	3800	3600	7320 BEP
100	215	47	216	208	6.95	3800	4000	7320 BECBP
100	215	47	216	208	6.95	3800	4000	7320 BECBY
100	215	47	216	208	6.95	3800	4000	7320 BEGAP
100	215	47	216	208	6.95	3800	5000	7320 BECBM
100	215	47	216	208	6.95	3800	5000	7320 BECCM
100	215	47	216	208	6.95	3800	5000	7320 BEGAM
100	265	60	265	270	8.5	3200	3200	7420 CBM
101.6	184.15	31.75	159	143	5.1	4500	4500	ALS 32 ABP
105	190	36	148	137	4.8	4000	3800	7221 BEP
105	190	36	156	150	5.2	4000	4300	7221 BECBP
105	190	36	156	150	5.2	4000	5300	7221 BECBM
105	225	49	203	193	6.4	3600	3400	7321 BEP
105	225	49	216	208	6.95	3600	3800	7321 BECBP
105	225	49	216	208	6.95	3600	4800	7321 BECBM
105	225	49	216	208	6.95	3600	4800	7321 BEGAM

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
110	200	38	153	143	4.9	4000	3600	7222 BEGAF
110	200	38	153	143	4.9	4000	3600	7222 BEP
110	200	38	163	156	5.3	4000	4000	7222 BECBP
110	200	38	163	156	5.3	4000	4000	7222 BECBY
110	200	38	163	156	5.3	4000	5000	7222 BECBM
110	200	38	163	156	5.3	4000	5000	7222 BECCM
110	240	50	225	224	7.2	3400	3200	7322 BEP
110	240	50	225	224	7.2	3400	3400	7322 BEM
110	240	50	240	245	7.8	3400	3600	7322 BECBP
110	240	50	240	245	7.8	3400	3600	7322 BECBY
110	240	50	240	245	7.8	3400	4500	7322 BECBM
110	240	50	240	245	7.8	3400	4500	7322 BECCM
110	240	50	240	245	7.8	3400	4500	7322 BEGAM
110	240	50	240	245	7.8	3400	4500	7322 BEGBM
120	180	28	87.1	93	3.2	4000	4000	7024 BGM
120	215	40	165	163	5.3	3600	4000	7224 BCBM
120	215	40	165	163	5.3	3600	4000	7224 BGAM
120	215	40	165	163	5.3	3600	4000	7224 BM
120	260	55	238	250	7.65	3000	3600	7324 BCBM
120	260	55	238	250	7.65	3000	3600	7324 BGAM
120	260	55	238	250	7.65	3000	3600	7324 BGBM
127	228.6	34.925	186	190	6	3600	3600	ALS 40 ABM
130	230	40	186	193	6.1	3400	3400	7226 BGAF
130	230	40	186	193	6.1	3400	3800	7226 BCBM
130	230	40	186	193	6.1	3400	3800	7226 BGAM
130	230	40	186	193	6.1	3400	3800	7226 BM
130	280	58	276	305	9	2800	3400	7326 BCBM
130	280	58	276	305	9	2800	3400	7326 BGAM
130	280	58	276	305	9	2800	3400	7326 BM
140	210	33	114	129	4.15	3400	3400	7028 BGM

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
140	250	42	199	212	6.4	3000	3600	7228 BCBM
140	250	42	199	212	6.4	3000	3600	7228 BGAM
140	250	42	199	212	6.4	3000	3600	7228 BM
140	300	62	302	345	9.8	2600	3000	7328 BCBM
140	300	62	302	345	9.8	2600	3000	7328 BGAM
150	225	35	133	146	4.55	3200	3200	7030 BGM
150	270	45	216	240	6.95	2800	3200	7230 BCBM
150	270	45	216	240	6.95	2800	3200	7230 BGAM
150	320	65	332	390	10.8	2400	2800	7330 BCBM
150	320	65	332	390	10.8	2400	2800	7330 BGAM
160	290	48	255	300	8.5	2800	3000	7232 BCBM
160	290	48	255	300	8.5	2800	3000	7232 BGAM
160	340	68	358	440	11.8	2400	2600	7332 BCBM
170	260	42	172	204	5.85	2000	2800	7034 BGM
170	310	52	281	345	9.5	2400	2800	7234 BCBM
170	360	72	390	490	12.7	2200	2600	7334 BCBM
180	280	46	195	240	6.7	2600	2600	7036 BGM
180	320	52	291	375	10	2400	2600	7236 BCAM
180	320	52	291	375	10	2400	2600	7236 BCBM
180	380	75	410	540	13.7	2000	2400	7336 BCBM
190	290	46	199	255	6.95	2400	2400	7038 BGM
190	340	55	307	405	10.4	2200	2600	7238 BCBM
190	400	78	442	600	14.6	2000	2200	7338 BCBM
200	310	51	225	290	7.8	2200	2200	7040 BGM
200	360	58	325	430	11	2000	2400	7240 BCBM
200	420	80	462	655	15.6	1900	2200	7340 BCBM
220	340	56	255	355	9	2000	2000	7044 BGM
220	400	65	390	560	13.4	1800	2200	7244 BCBM
220	460	88	494	720	16.6	1600	1700	7344 BCBM
240	360	56	260	375	9.15	1900	1900	7048 BGM

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
240	440	72	364	540	12.5	1600	1700	7248 BCBM
240	500	95	559	800	17.6	1400	1500	7348 BCBM
260	400	65	332	510	11.8	1700	1700	7052 BGM
260	480	80	507	780	17.3	1400	1500	7252 BM
280	420	65	338	540	12.2	1600	1600	7056 BGM
280	500	80	507	830	17.6	1400	1400	7256 BM
300	460	74	377	630	13.7	1400	1500	7060 BGM
300	460	74	423	695	15.3	1500	1600	7060 AGM
300	540	85	553	930	19.3	1300	1300	7260 BCBM
320	440	56	351	585	12.9	1500	1600	71964 AC
320	480	74	390	670	14	1300	1400	7064 BGM
320	580	92	572	1020	20.4	1200	1200	7264 BCBM
340	460	56	338	585	12.5	1500	1500	71968 ACMB
340	520	82	449	815	16.6	1200	1300	7068 BGM
360	440	38	234	425	9	1500	1500	71872 ACMB
360	480	56	302	550	11.2	1400	1500	71972 BM
360	480	56	338	610	12.5	1400	1500	71972 AMB
360	480	56	351	630	13.2	1400	1500	71972 ACMB
360	540	82	462	850	17	1200	1200	7072 BGM
360	540	82	520	950	19	1300	0	7072 AGM
360	540	82	520	950	19	1300	1300	7072 AM
380	480	31	190	355	8	1300	1400	70876 AMB
380	480	46	291	500	11	1300	1400	71876 ACGAMB
380	520	65	345	610	12.9	1200	1200	466953
380	520	65	410	735	15	1300	1300	71976 ACGAMB
380	560	82	468	850	16.6	1100	1200	7076 BGM
380	560	82	468	850	16.6	1100	1200	7076 BM
380	560	82	507	950	18.6	1200	1300	7076 AM
400	540	65	403	735	15.3	1200	1200	71980 AM
400	600	90	527	1020	19.3	1000	1100	7080 BM

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
400	600	90	605	1180	22.4	950	1200	307238
400	600	90	605	1180	22.4	950	1200	7080 AM
400	720	103	728	1500	26.5	900	950	7280 BM
410	560	70	423	830	16	1100	1100	468431
420	560	65	364	670	13.7	1200	1200	71984 BM
420	560	65	410	765	15.3	1200	1200	71984 AGAM
420	560	65	410	765	15.3	1200		71984 AM
420	620	90	540	1060	20	1000	1000	7084 BGM
420	620	90	605	1180	22	1100	1100	7084 AM
440	600	74	507	1040	19.3	1100	0	71988 ACMB
440	650	94	572	1180	21.6	950	950	7088 BM
440	650	94	650	1320	24	1000	1100	7088 AM
460	580	37	265	560	10.4	1100	1100	70892 AM
460	580	56	371	765	14.3	1100	1100	71892 AGMB
460	620	74	507	1040	19	100	1100	71992 ACM
460	680	100	618	1290	23.2	900	900	7092 BM
460	680	100	689	1460	25.5	950	0	7092 AM
480	700	100	624	1340	24	850	900	7096 BM
480	700	100	702	1530	26.5	950	1000	7096 AM
500	620	37	276	620	11	1000	1000	708/500 AMB
500	620	56	390	850	15.3	1000	1000	718/500 AGMB
500	620	56	390	850	15.3	1000	1000	718/500 AMB
500	670	78	553	1220	21.2	950	1000	719/500 AGMB
500	720	100	637	1400	24.5	800	850	70/500 BM
500	720	100	715	1600	27.5	900	950	70/500 AM
530	650	56	390	900	15.6	950	1000	718/530 AMB
530	710	82	618	1340	23.6	850	900	719/530 ACM
530	780	112	741	1700	28	750	800	70/530 BM
530	780	112	832	1900	31.5	800	850	70/530 AM
540	630	45	260	600	10.6	850	900	BA1B 311585 A

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
60	110	36.5	75	64	2.75	5600	5600	3212 A-2Z
60	110	36.5	75	64	2.75	5600	5600	3212 ATN9
60	110	36.5	75	64	2.75		4000	3212 A-2RS1
60	110	36.5	75	64	2.75		4000	3212 A-2RS1TN9/MT33
60	130	54	127	95	4.05	5600	5000	3312 A
60	130	54	127	95	4.05	5600	5000	3312 A-2Z
65	120	38.1	80.6	73.5	3.1	5600	4800	3213 A
65	120	38.1	80.6	73.5	3.1	5600	4800	3213 A-2Z
65	120	38.1	80.6	73.5	3.1		3600	3213 A-2RS1
65	140	58.7	138	122	5.1	5300	4500	3313 DNRCBM
65	140	58.7	146	110	4.55	5300	4500	3313 A
65	140	58.7	146	110	4.55	5300	4500	3313 A-2Z
70	125	39.7	88.4	80	3.4	5600	4500	3214 A
70	125	39.7	88.4	80	3.4	5600	4500	3214 A-2Z
70	150	63.5	163	125	5	5000	4300	3314 A
70	150	63.5	163	125	5	5000	4300	3314 A-2Z
75	130	41.3	95.6	88	3.75	5300	4500	3215 A
75	130	41.3	95.6	88	3.75	5300	4500	3215 A-2Z
75	160	68.3	176	140	5.5	4500	4000	3315 A
75	160	68.3	176	140	5.5	4500	4000	3315 A-2Z
80	140	44.4	106	95	3.9	5000	4300	3216 A
80	170	68.3	193	156	6	4300	3800	3316 A
85	150	49.2	124	110	4.4	4500	3800	3217 A
85	180	73	208	176	6.55	4000	3600	3317 A
90	160	52.4	130	120	4.55	4300	3600	3218 A
90	190	73	208	180	6.4	3800	3400	3318 A
95	170	55.6	159	146	5.4	4000	3400	3219 A
95	200	77.8	240	216	7.5	3600	3200	3319 A
100	180	60.3	178	166	6	3800	3200	3220 A
100	215	82.6	255	255	8.65	3400	2800	3320 A

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
110	200	69.8	212	212	7.2	3400	2800	3222 A
110	240	92.1	291	305	9.8	3000	2600	3322 A
120	190	66	182	232	8	3400	3600	305256 D
150	225	73	182	265	7.5	1700	2000	305286 D
150	230	70	203	285	9	2800	3000	305283 D
150	230	70	203	285	9	2800	3000	305283 DA
160	215	56	135	220	6.8	2800	3000	305608
160	215	56	135	220	6.8	2800	3000	305608 B
160	240	76	234	335	10	2600	2800	305183
170	260	84	281	405	11.6	2400	2600	305180
180	250	70	190	285	8.65	2400	2600	305288 DA
180	259.5	66	225	310	8.8	2400	2600	305262 D
190	269.5	66	270	415	11.6	2200	2400	305338 D
200	279.5	76	242	380	10.4	1900	2400	305428 D
200	280	80	242	380	10.4	2200	2400	305393
200	289.5	76	302	475	12.9	1800	2200	305263 D
200	289.5	76	302	475	12.9	1800	2200	305263 DA
220	309.5	76	312	520	13.4	2000	2000	305272 D
220	309.5	76	312	520	13.4	2000	2000	305272 DA
220	309.5	76	312	520	13.4	2000	2000	305272 DB
230	329.5	80	351	600	15.3	1900	2000	305264 D
260	369.5	92	397	710	17.3	1700	1700	305270 D
280	389.5	92	403	750	18	1600	1600	305269 D
